3210091 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	3210091
Manufacturer	Phoenix Contact
Other Part Numbers	277-4013-ND 277-4013 PP-H2,5/1-M 3210091-ND PP-H 2,5/1-M

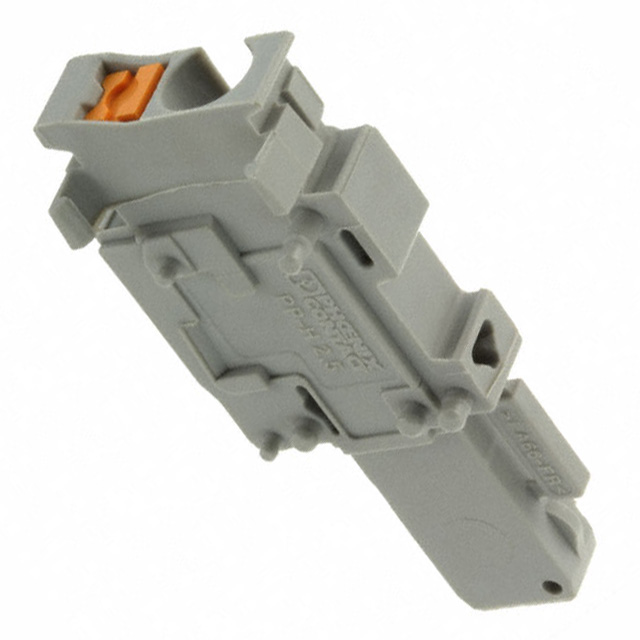

Description	TERM BLOCK PLUG 1POS STR
Detailed Description	1 Position Terminal Block Plug, Female Sockets 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Phoenix Contact
Series		CLIPLINE COMBI PP-H
Packaging		Bulk
Part Status		Active
Features		Interlocking (Side)
Color		Gray
Mounting Type		Free Hanging (In-Line)
Number of Positions		1
Type		Plug, Female Sockets
Termination Style		Screwless - Push-In Spring
Material Flammability Rating		UL94 V-0
Current - IEC		24A
Number of Levels		1
Wire Gauge or Range - AWG		12-26 AWG
Wire Gauge or Range - mm²		0.14-4mm²
Positions Per Level		1
Plug Wire Entry		180°
Housing Material		Polyamide (PA), Nylon
Wire Strip Length		10mm
Insulation Height		1.535" (39.00mm)
Current - UL		20 A
Voltage - IEC		500 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		3210091

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
