Part Number | 3211848 |
---|---|
Manufacturer | Phoenix Contact |
Other Part Numbers | 277-3211848-ND 277-3211848 PTTBS 4-PV |
Description | PTTBS 4-PV |

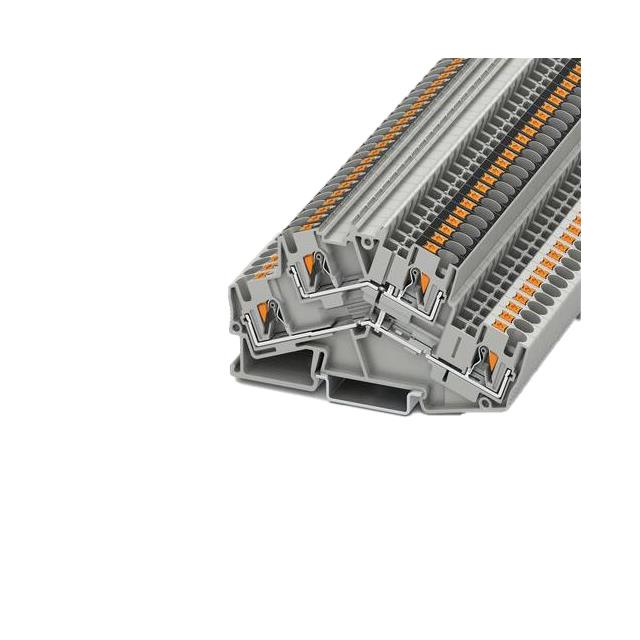

Detailed Description | Terminal Block Connector 4 Position Feed Through Gray 10-24 AWG |
Manufacturer Standard Lead Time | 4 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Phoenix Contact | |
Series | CLIPLINE PTTBS | |
Packaging | Bulk | |
Part Status | Active | |
Color | Gray | |
Type | Feed Through | |
Termination Style | Push In | |
Material - Insulation | Polyamide (PA), Nylon | |
Material Flammability Rating | UL94 V-0 | |
Number of Levels | 2; Connected | |
Terminal - Width | 6.2mm | |
Voltage - IEC | 800V | |
Voltage - UL | 600V | |
Wire Gauge or Range - AWG | 10-24 AWG | |
Wire Gauge or Range - mm² | 0.2-6mm² | |
Stripping Length | 10mm ~ 12mm | |
Current - UL | 24 A | |
Current - IEC | 28 A | |
Number of Positions | 4 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 3211848 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.90.4000 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $8.97 | $8.97 |
10 | $8.73 | $87.30 |
50 | $8.15 | $407.50 |
100 | $7.50 | $750.00 |
250 | $6.93 | $1,732.50 |
500 | $6.60 | $3,300.00 |
1,000 | $6.23 | $6,230.00 |
