33681C

33681C

Part Number
33681C
Manufacturer Murata Power Solutions
Other Part Numbers
811-1240-ND
811-1240
Description FIXED IND 680UH 920MA 183MOHM TH

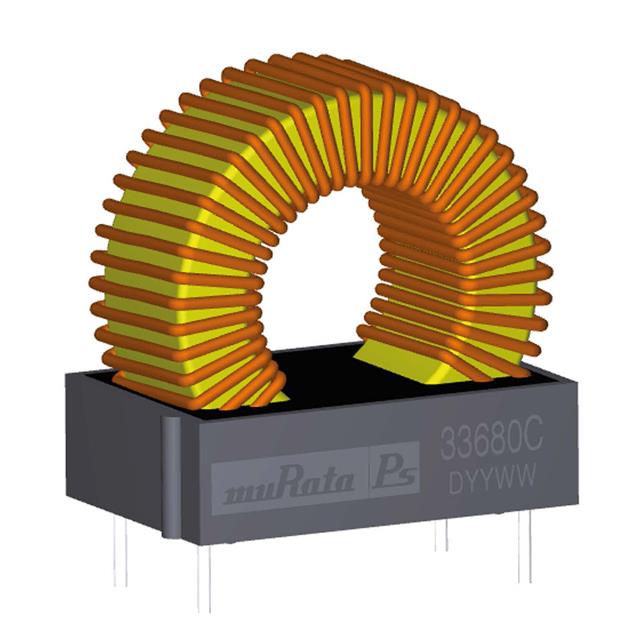

Detailed Description 680 µH Unshielded Toroidal Inductor 920 mA 183mOhm Max Radial, Vertical, 4 Leads (Open)
Manufacturer Standard Lead Time 12 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Murata Power Solutions
Series
3300
Packaging
Tray
Part Status Active
Tolerance ±15%
Package / Case Radial, Vertical, 4 Leads (Open)
Size / Dimension 1.142" L x 0.642" W (29.00mm x 16.30mm)
Mounting Type Through Hole
Shielding Unshielded
Type Toroidal
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 183mOhm Max
Q @ Freq 0.64 @ 800kHz
Frequency - Self Resonant 900kHz
Inductance Frequency - Test 800 kHz
Height - Seated (Max) 1.220" (31.00mm)
Inductance 680 µH
Current Rating (Amps) 920 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets 33681C
Datasheets 3300 Series Side

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

Tray

QUANTITY UNIT PRICE EXT PRICE
40 $1.67 $66.80
