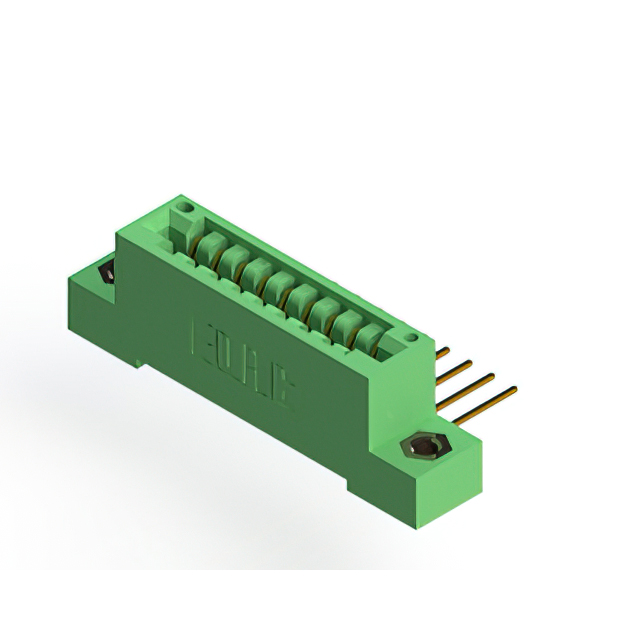

346-009-558-107 _ Edgeboard Connectors_Card Edge Connectors_Connectors, Interconnects

Part Number	346-009-558-107
Manufacturer	EDAC Inc.
Other Part Numbers	151-346-009-558-107-ND 151-346-009-558-107
Description	CONN EDGE SGL FMALE 9POS 0.125
Detailed Description	9 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Card Edge Connectors Edgeboard Connectors
Manufacturer		EDAC Inc.
Series		346
Packaging		Box
Part Status		Active
Gender		Female
Contact Finish		Gold
Color		Green
Mounting Type		Through Hole, Right Angle
Number of Positions		9
Pitch		0.125" (3.18mm)
Operating Temperature		-40°C ~ 105°C
Read Out		Single
Contact Type		Cantilever
Card Type		Non Specified - Single Edge
Card Thickness		0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature		Flush Mount, Top Opening, Threaded Insert, M3
Termination		Solder, Wire Wrap
Contact Finish Thickness		10.0µin (0.25µm)
Material - Insulation		Polyester Thermoplastic
Contact Material		Copper Alloy
Number of Positions/Bay/Row		9
Number of Rows		1
Termination Rows		1
