3520430RJT

Part Number
3520430RJT
Manufacturer TE Connectivity Passive Product
Other Part Numbers
3520430RJT-ND
2-1879005-2
2-1879005-2-ND

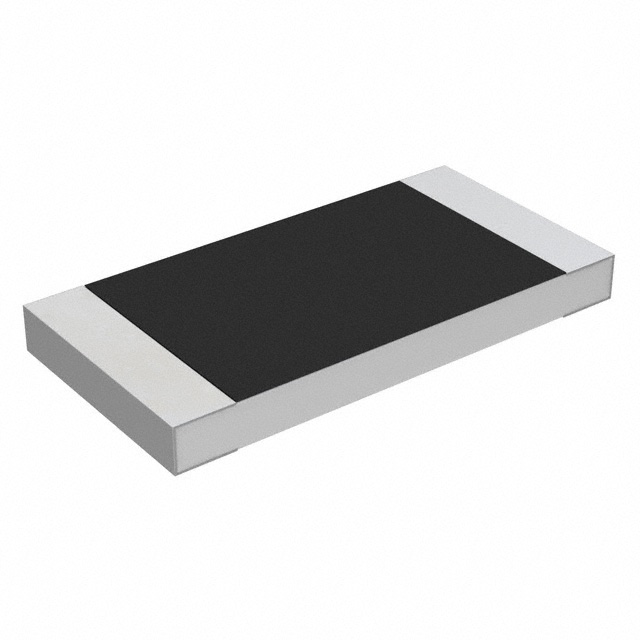

Description RES SMD 430 OHM 5% 1W 2512
Detailed Description 430 Ohms ±5% 1W Chip Resistor 2512 (6432 Metric) Thick Film
Manufacturer Standard Lead Time 12 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer TE Connectivity Passive Product
Series
3520, CGS
Packaging
Tape & Reel (TR)
Part Status Active
Power (Watts) 1W
Tolerance ±5%
Package / Case 2512 (6432 Metric)
Temperature Coefficient ±200ppm/°C
Size / Dimension 0.252" L x 0.126" W (6.40mm x 3.20mm)
Composition Thick Film
Operating Temperature -55°C ~ 125°C
Number of Terminations 2
Supplier Device Package 2512
Height - Seated (Max) 0.028" (0.70mm)
Resistance 430 Ohms

Documents & Media

RESOURCE TYPE LINK
Datasheets 3520430RJT
Datasheets 2-1879005-2 Statement of Compliance
Datasheets 2-1879005-2.pdf
Datasheets 3520 Series Drawing

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8533.21.0030
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
RoHS Status ROHS3 Compliant
