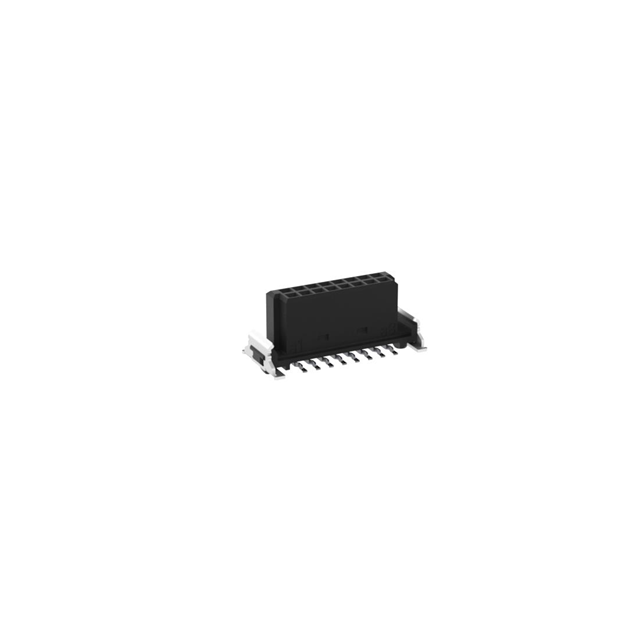

354055-E _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	354055-E
Manufacturer	TE Connectivity ERNI
Other Part Numbers	2684-354055-E-ND 100103940001 100404180003 354055 2684-354055-ND 354055-E 2684-354055-E 2684-354055
Description	SMC F VERT 16POS SMT 6.25MM
Detailed Description	16 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Manufacturer Standard Lead Time	17 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		TE Connectivity ERNI
Series		SMC
Packaging		Bulk
Part Status		Active
Features		Board Guide, Pick and Place, Solder Retention
Connector Type		Receptacle
Current Rating (Amps)		1.7A per Contact
Mounting Type		Surface Mount
Number of Positions		16
Style		Board to Board
Operating Temperature		-55°C ~ 125°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.050" (1.27mm)
Contact Finish - Mating		Gold
Contact Finish - Post		Tin
Contact Finish Thickness - Post		157.5µin (4.00µm)
Contact Shape		Square
Insulation Height		0.246" (6.25mm)
Insulation Material		Liquid Crystal Polymer (LCP)
Row Spacing - Mating		0.050" (1.27mm)
Number of Rows		2

RESOURCE TYPE		LINK
Datasheets		Manufacturing process chg 12/OCT/2023
Datasheets		PN Change 26/JAN/2023

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Bulk	1	$3.56	$3.56
Total Amount: $3.56
