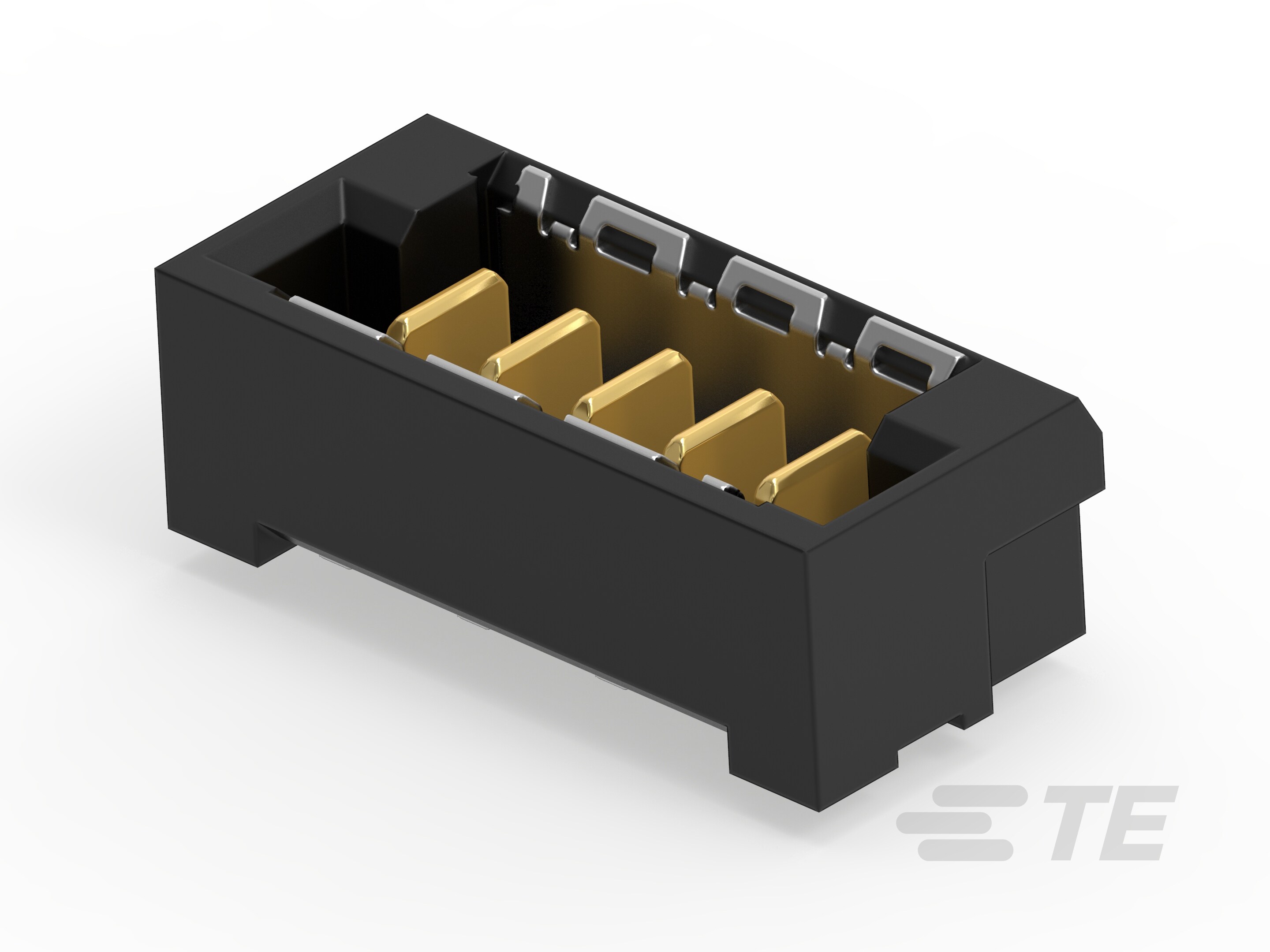

354275-E _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	354275-E
Manufacturer	TE Connectivity ERNI
Other Part Numbers	2684-354275-ETR-ND 2684-354275-ECT-ND 2684-354275-EDKR-ND 2684-354275-ETR 2684-354275-EDKR 2684-354275CT-ND 354275 2684-354275DKR-ND 2684-354275DKR 2684-354275-ECT 2684-354275TR-ND 2684-354275CT 2684-354275TR
Description	5-PIN, VERTICAL, SMT
Detailed Description	Connector Header Surface Mount 5 position 0.039" (1.00mm)
Manufacturer Standard Lead Time	42 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		TE Connectivity ERNI
Series		MICROSPEED
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Board Guide, Pick and Place
Connector Type		Header
Current Rating (Amps)		1A
Mounting Type		Surface Mount
Number of Positions		5
Number of Rows		1
Style		Board to Cable/Wire
Operating Temperature		-55°C ~ 125°C
Contact Type		Male Blade
Fastening Type		Latch Holder
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.039" (1.00mm)
Contact Finish - Mating		Gold
Contact Finish - Post		Tin
Contact Finish Thickness - Post		157.5µin (4.00µm)
Contact Shape		Rectangular
Insulation Height		0.189" (4.80mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Liquid Crystal Polymer (LCP)
Row Spacing - Mating		0.079" (2.00mm)
Contact Length - Mating		0.108" (2.75mm)

RESOURCE TYPE		LINK
Datasheets		PN Change 26/JAN/2023

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

Can ship immediately.
