357-030-520-202 _ Edgeboard Connectors_Card Edge Connectors_Connectors, Interconnects

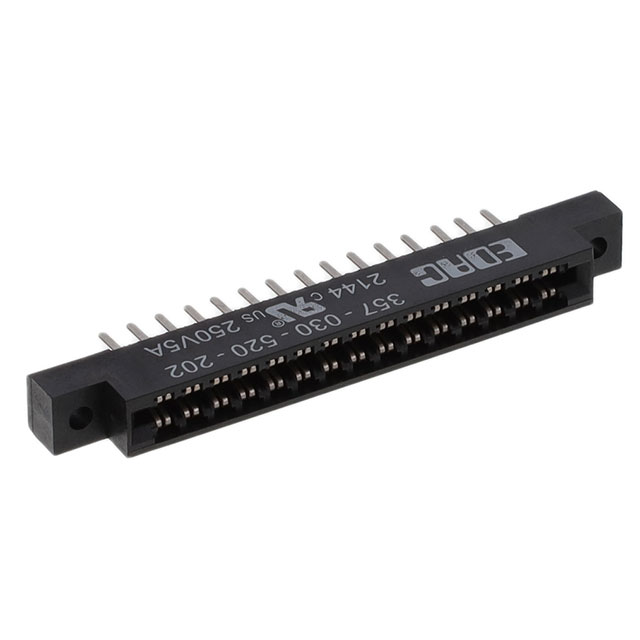

Part Number	357-030-520-202
Manufacturer	EDAC Inc.
Other Part Numbers	EDC357302-ND 3.57031E+11 EDC357302-NDR EDC357302
Description	CONN EDGE DUAL FMALE 30POS 0.156
Detailed Description	30 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Card Edge Connectors Edgeboard Connectors
Manufacturer		EDAC Inc.
Series		357
Packaging		Bulk
Part Status		Active
Gender		Female
Contact Finish		Gold
Color		Black
Mounting Type		Through Hole
Number of Positions		30
Pitch		0.156" (3.96mm)
Operating Temperature		-40°C ~ 105°C
Read Out		Dual
Contact Type		Semi Bellows
Card Type		Non Specified - Dual Edge
Card Thickness		0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature		Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination		Solder
Contact Finish Thickness		10.0µin (0.25µm)
Material - Insulation		Polyester Thermoplastic
Contact Material		Copper Alloy
Number of Positions/Bay/Row		15
Number of Rows		2
Termination Rows		2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
