35HDBN _ Audio Connectors_Barrel Connectors_Connectors, Interconnects

Part Number	35HDBN
Manufacturer	Switchcraft / Conxall
Other Part Numbers	SC1452-ND 35HDBN-ND SC1452
Description	CONN PLUG STEREO 3.5MM 3COND
Detailed Description	3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Barrel Connectors Audio Connectors
Manufacturer		Switchcraft / Conxall
Series		35HD
Packaging		Bulk
Part Status		Active
Voltage - Rated		250VAC, 140VDC
Connector Type		Phone Plug
Gender		Male
Mounting Type		Free Hanging (In-Line)
Shielding		Unshielded
Operating Temperature		0°C ~ 66°C
Number of Positions/Contacts		3 Conductors, 3 Contacts
Internal Switch(s)		Does Not Contain Switch
Signal Lines		Stereo (3 Conductor, TRS)
Termination		Solder

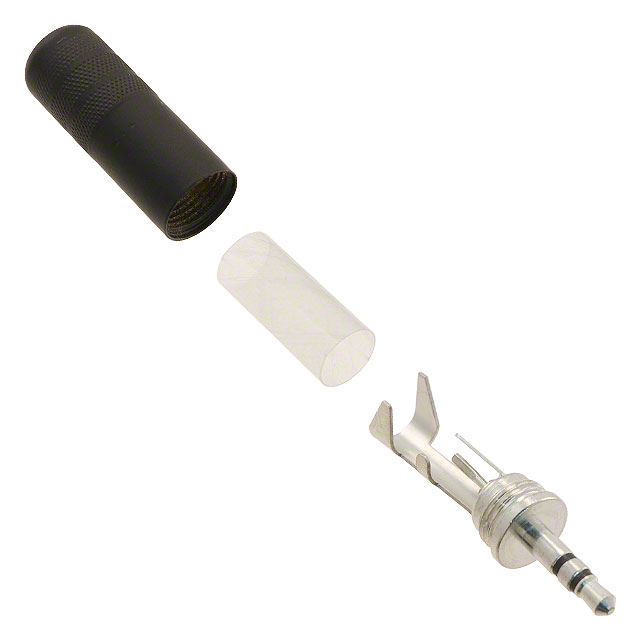

Includes		3 pcs - 1 Connector, 1 Handle, 1 Insulator Tube
Cable Opening		0.290" (7.37mm)
Contact Material		Brass
Housing Material		Brass
Body Material		Brass
Body Color		Silver, Black
Contact Material - Plating		Tin
Actual Diameter		0.138" (3.50mm)
Mating Length/Depth		0.560" (14.20mm)
Industry Recognized Mating Diameter		3.50mm (0.141", 1/8", Mini Plug) - Headphone
Current Rating (Amps)		4 A

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.8000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
