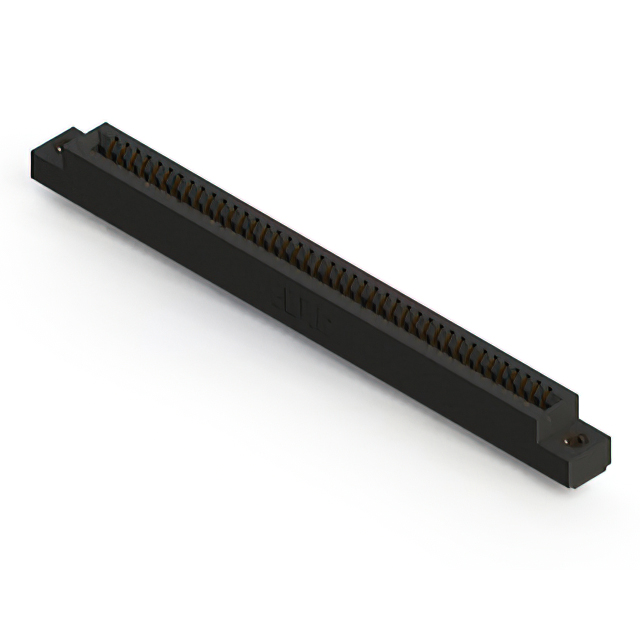

391-082-522-207 _ Edgeboard Connectors_Card Edge Connectors_Connectors, Interconnects

Part Number	391-082-522-207
Manufacturer	EDAC Inc.
Other Part Numbers	151-391-082-522-207-ND 151-391-082-522-207
Description	CONN EDGE DUAL FMALE 82POS 0.100
Detailed Description	82 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Card Edge Connectors Edgeboard Connectors
Manufacturer		EDAC Inc.
Series		391
Packaging		Box
Part Status		Active
Gender		Female
Contact Finish		Gold
Color		Black
Mounting Type		Through Hole
Number of Positions		82
Pitch		0.100" (2.54mm)
Operating Temperature		-40°C ~ 105°C
Read Out		Dual
Contact Type		Semi Bellows
Card Type		Non Specified - Dual Edge
Card Thickness		0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature		Flush Mount, Top Opening, Threaded Insert, M3
Termination		Solder
Contact Finish Thickness		10.0µin (0.25µm)
Material - Insulation		Polyester Thermoplastic
Contact Material		Copper Alloy
Number of Positions/Bay/Row		41
Number of Rows		2
Termination Rows		2
