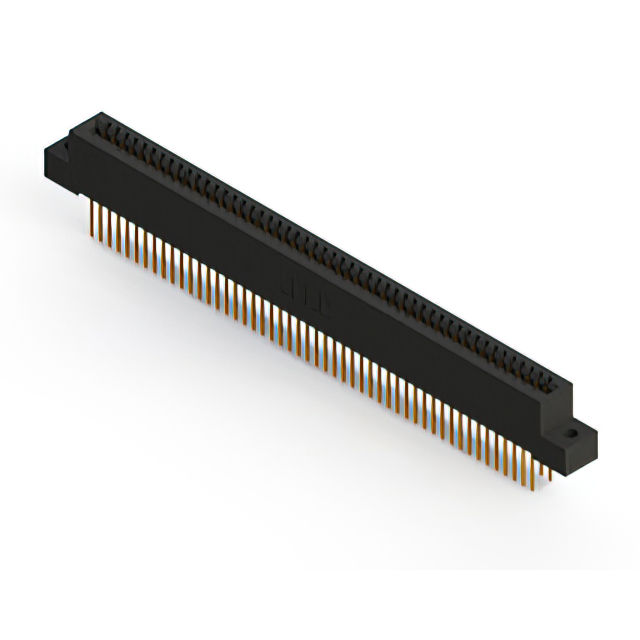

392-100-542-202 _ Edgeboard Connectors_Card Edge Connectors_Connectors, Interconnects

Part Number	392-100-542-202
Manufacturer	EDAC Inc.
Other Part Numbers	392-100-542-202-ND
Description	CONN EDGE DUAL FML 100POS 0.100
Detailed Description	100 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Card Edge Connectors Edgeboard Connectors
Manufacturer		EDAC Inc.
Series		392
Packaging		Bulk
Part Status		Active
Gender		Female
Contact Finish		Gold
Color		Black
Mounting Type		Through Hole
Number of Positions		100
Pitch		0.100" (2.54mm)
Operating Temperature		-40°C ~ 105°C
Read Out		Dual
Contact Type		Cantilever
Card Type		Non Specified - Dual Edge
Card Thickness		0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature		Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination		Wire Wrap
Contact Finish Thickness		10.0µin (0.25µm)
Material - Insulation		Polyester Thermoplastic
Contact Material		Copper Alloy
Number of Positions/Bay/Row		50
Number of Rows		2
Termination Rows		2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
