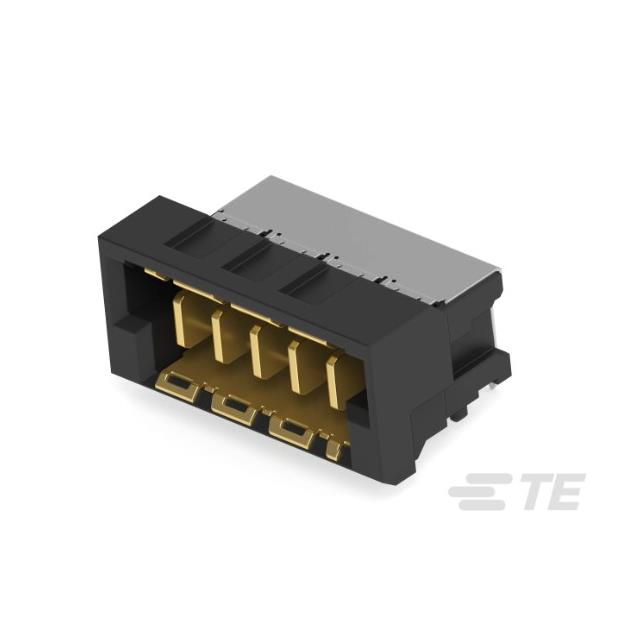

394572-E _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	394572-E
Manufacturer	TE Connectivity ERNI
Other Part Numbers	2684-394572-E-ND 2684-394572-E
Description	5-PIN, RIGHT ANGLE, THR
Detailed Description	Connector Header Through Hole, Right Angle 5 position 0.079" (2.00mm)
Manufacturer Standard Lead Time	61 weeks

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		TE Connectivity ERNI
Series		MICROSPEED
Packaging		Box
Part Status		Active
Features		Board Guide
Connector Type		Header
Current Rating (Amps)		18A
Mounting Type		Through Hole, Right Angle
Number of Positions		5
Number of Rows		1
Style		Board to Cable/Wire
Operating Temperature		-55°C ~ 125°C
Contact Type		Male Pin, Power
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.079" (2.00mm)
Contact Finish - Mating		Gold
Contact Finish - Post		Tin
Contact Finish Thickness - Post		157.5µin (4.00µm)
Contact Shape		Rectangular
Insulation Height		0.266" (6.75mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Liquid Crystal Polymer (LCP)

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
