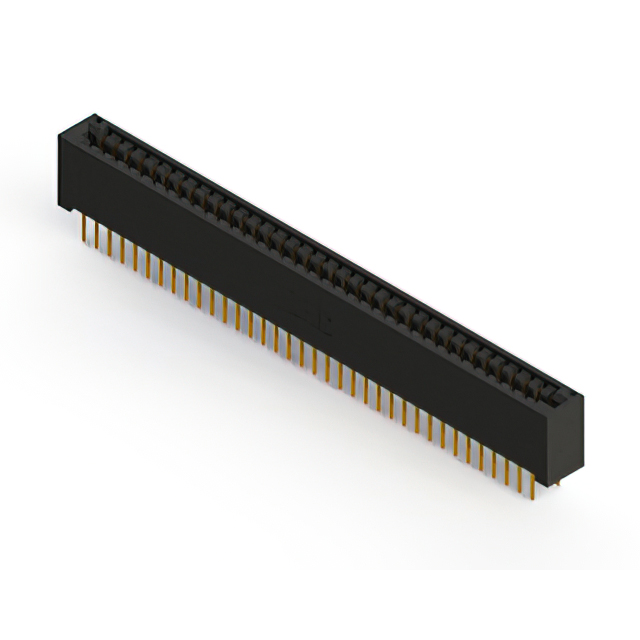

396-072-526-201 _ Edgeboard Connectors_Card Edge Connectors_Connectors, Interconnects

Part Number	396-072-526-201
Manufacturer	EDAC Inc.
Other Part Numbers	396-072-526-201-ND
Description	CONN EDGE DUAL FMALE 72POS 0.125
Detailed Description	72 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Card Edge Connectors Edgeboard Connectors
Manufacturer		EDAC Inc.
Series		396
Packaging		Bulk
Part Status		Active
Gender		Female
Contact Finish		Gold
Color		Black
Mounting Type		Through Hole
Number of Positions		72
Pitch		0.125" (3.18mm)
Operating Temperature		-40°C ~ 105°C
Read Out		Dual
Contact Type		Cantilever
Card Type		Non Specified - Dual Edge
Card Thickness		0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination		Solder
Contact Finish Thickness		10.0µin (0.25µm)
Material - Insulation		Polyester Thermoplastic
Contact Material		Copper Alloy
Number of Positions/Bay/Row		36
Number of Rows		2
Termination Rows		2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
