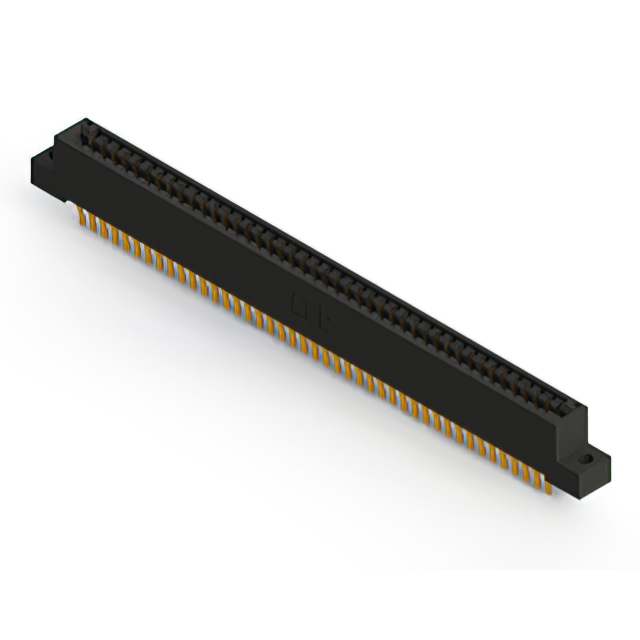

396-086-560-204 _ Edgeboard Connectors_Card Edge Connectors_Connectors, Interconnects

Part Number	396-086-560-204
Manufacturer	EDAC Inc.
Other Part Numbers	151-396-086-560-204-ND 151-396-086-560-204
Description	CONN EDGE DUAL FMALE 86POS 0.125
Detailed Description	86 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Card Edge Connectors Edgeboard Connectors
Manufacturer		EDAC Inc.
Series		396
Packaging		Box
Part Status		Active
Features		Card Extender
Gender		Female
Contact Finish		Gold
Color		Black
Mounting Type		Board Edge, Straddle Mount
Number of Positions		86
Pitch		0.125" (3.18mm)
Operating Temperature		-40°C ~ 105°C
Read Out		Dual
Contact Type		Cantilever
Card Type		Non Specified - Dual Edge
Card Thickness		0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature		Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
Termination		Solder
Contact Finish Thickness		10.0µin (0.25µm)
Material - Insulation		Polyester Thermoplastic
Contact Material		Copper Alloy
Number of Positions/Bay/Row		43
Number of Rows		2
Termination Rows		2
