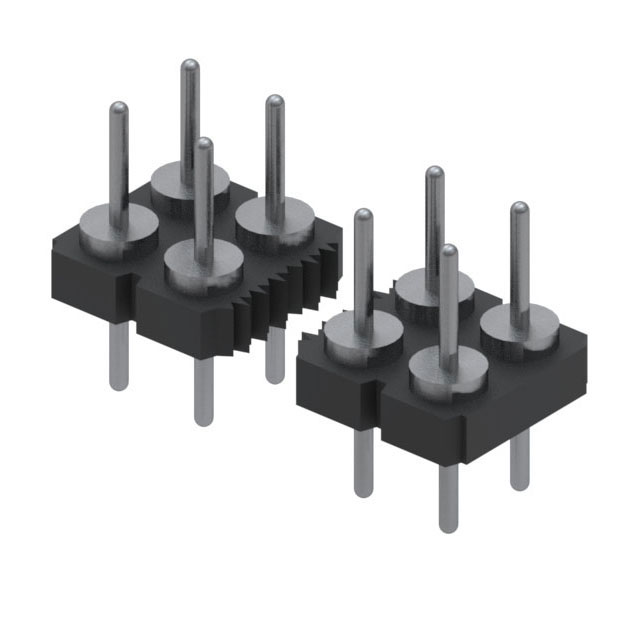

435-40-272-00-160000 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	435-40-272-00-160000
Manufacturer	Mill-Max
Other Part Numbers	ED1372-72-ND ED1372-72 4.35403E+15 ED90485-ND ED90485 4354027200160000
Description	CONN HEADER VERT 72POS 2.54MM
Detailed Description	Connector Header Through Hole 72 position 0.100" (2.54mm)
Manufacturer Standard Lead Time	3 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Mill-Max
Series		435
Packaging		Tube
Part Status		Active
Connector Type		Header
Mounting Type		Through Hole
Number of Positions		72
Number of Rows		2
Style		Board to Board
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Contact Material		Brass Alloy
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Tin
Contact Finish Thickness - Mating		200.0µin (5.08µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		200.0µin (5.08µm)
Contact Shape		Circular
Contact Length - Post		0.104" (2.64mm)
Insulation Height		0.050" (1.27mm)
Shrouding		Unshrouded
Overall Contact Length		0.299" (7.60mm)
Insulation Material		Polycyclohexylenedimethylene Terephthalate (PCT)
Row Spacing - Mating		0.100" (2.54mm)
Contact Length - Mating		0.125" (3.18mm)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
