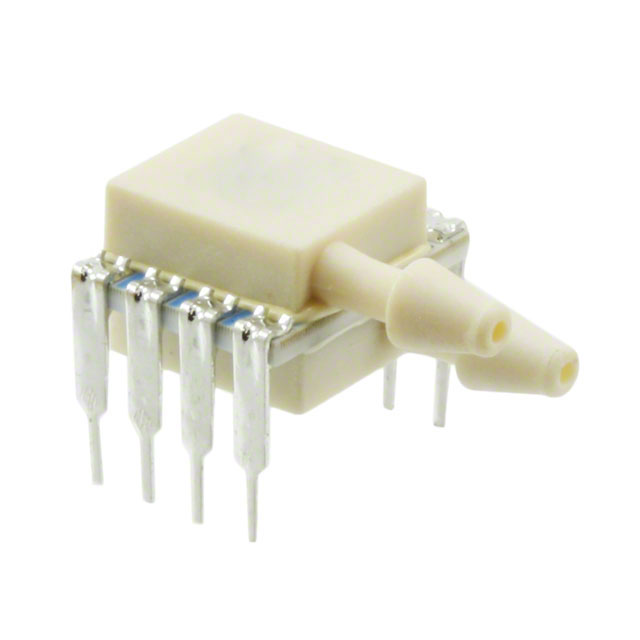

Part Number | 4515DO-DS3BK005GP |
---|---|
Manufacturer | TE Connectivity Measurement Specialties |
Other Part Numbers | 223-1433-ND 223-1433 2266-4515DO-DS3BK005GP |
Description | SENSOR 0.18PSIG 0.14" 14BIT |
Detailed Description | Pressure Sensor 0.18PSI (1.25kPa) Vented Gauge Male - 0.14" (3.56mm) Tube, Dual 14 b 8-DIP Module |
Manufacturer Standard Lead Time | 21 weeks |
Category | ||
---|---|---|
Manufacturer | TE Connectivity Measurement Specialties | |
Series | ||
Packaging | Tray | |
Part Status | Active | |
Features | Temperature Compensated | |
Package / Case | 8-DIP Module | |
Output Type | I2C | |
Mounting Type | Through Hole | |
Output | 14 b | |
Operating Pressure | 0.18PSI (1.25kPa) | |
Pressure Type | Vented Gauge | |
Accuracy | ±0.25% | |
Operating Temperature | -10°C ~ 85°C | |
Termination Style | PC Pin | |
Voltage - Supply | 3.3V | |
Port Size | Male - 0.14" (3.56mm) Tube, Dual | |
Applications | Board Mount | |
Port Style | Barbed | |
Maximum Pressure | 10PSI (68.95kPa) |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 4515DO-DS3BK005GP |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 9026.20.4000 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | Vendor Undefined | |
RoHS Status | ROHS3 Compliant |
QUANTITY | UNIT PRICE | EXT PRICE |
---|---|---|
1 | $72.25 | $72.25 |
10 | $60.84 | $608.40 |
30 | $57.04 | $1,711.20 |
80 | $55.14 | $4,411.20 |
