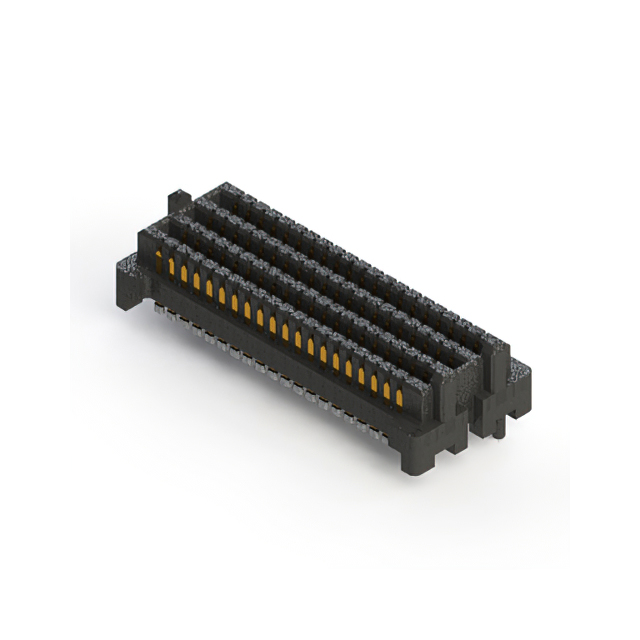

470-160-529-001

470-160-529-001

Part Number	470-160-529-001
Manufacturer	EDAC Inc.
Other Part Numbers	151-470-160-529-001-ND 151-470-160-529-001
Description	470 SERIES HIGH SPEED CARD EDGE
Detailed Description	160 Position Connector Array, Male Pins Surface Mount Gold
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer		EDAC Inc.
Series		470
Packaging		Bulk
Part Status		Active
Features		Board Guide
Connector Type		Array, Male Pins
Contact Finish		Gold
Mounting Type		Surface Mount
Number of Positions		160
Pitch		0.050" (1.27mm)
Height Above Board		0.299" (7.60mm)
Number of Rows		8

Documents & Media

RESOURCE TYPE		LINK
Datasheets		EDAC RoHS
Datasheets		EDAC REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
