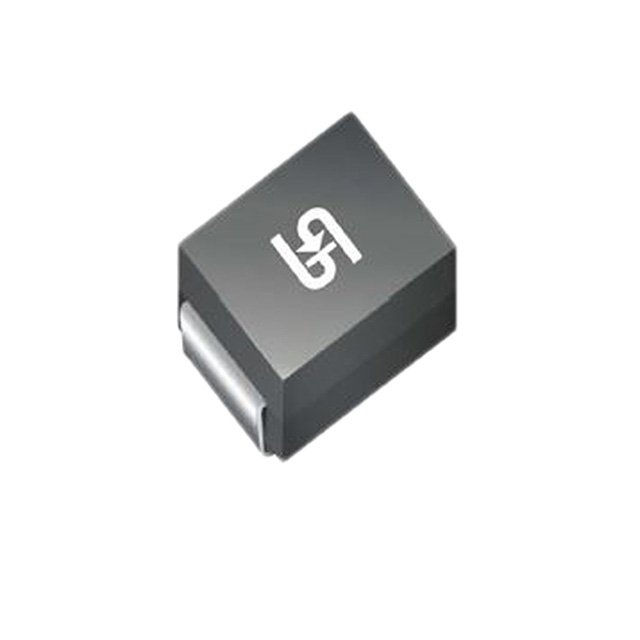

5.0SMDJ24AH

5.0SMDJ24AH

Part Number	5.0SMDJ24AH
Manufacturer	TSC (Taiwan Semiconductor)
Other Part Numbers	1801-5.0SMDJ24AHTR-ND 1801-5.0SMDJ24AHCT-ND 1801-5.0SMDJ24AHDKR-ND 5.0SMDJ24A M6GDKR-ND 5.0SMDJ24A M6GCT-ND 5.0SMDJ24AM6GCT 5.0SMDJ24A M6GTR-ND -2068-5.0SMDJ24AM6GTR-ND 5.0SMDJ24AM6GCT-ND 1801-5.0SMDJ24AHCT 5.0SMDJ24A M6GCT -2068-5.0SMDJ24AM6GDKR 5.0SMDJ24AM6GTR-ND -2068-5.0SMDJ24AM6GCT 5.0SMDJ24AM6GTR 5.0SMDJ24A M6GDKR 5.0SMDJ24A M6G 5.0SMDJ24AM6GDKR-ND 1801-5.0SMDJ24AHDKR 5.0SMDJ24AM6GDKR -2068-5.0SMDJ24AM6GTR 1801-5.0SMDJ24AHTR 5.0SMDJ24A M6GTR
Description	TVS DIODE 24VWM 38.9VC DO214AB
Detailed Description	38.9V Clamp 129A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Product Attributes

Category		Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes
Manufacturer		TSC (Taiwan Semiconductor)
Series		5.0SMDJ
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		DO-214AB, SMC
Mounting Type		Surface Mount
Type		Zener
Operating Temperature		-55°C ~ 175°C (TJ)
Applications		Telecom
Current - Peak Pulse (10/1000µs)		129A
Voltage - Reverse Standoff (Typ)		24V
Supplier Device Package		DO-214AB (SMC)
Unidirectional Channels		1
Voltage - Breakdown (Min)		26.7V
Voltage - Clamping (Max) @ Ipp		38.9V
Power - Peak Pulse		5000W (5kW)
Power Line Protection		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Part Number Update 1/Jan/2021

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 7480

Can ship immediately.
