5082-7613-CD000

5082-7613-CD000

Part Number	5082-7613-CD000
Manufacturer	Broadcom
Other Part Numbers	5082-7613-CD000-ND

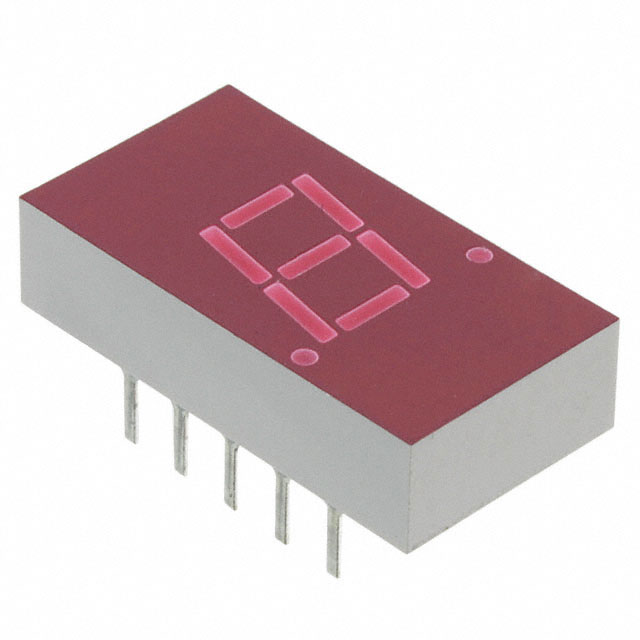

Description	DISPLAY 7-SEG 0.3" SGL RED 14DIP
Detailed Description	Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2.1V 20mA 0.750" H x 0.400" W x 0.180" D (19.05mm x 10.16mm x 4.57mm) 14-DIP (0.300", 7.62mm), 10 Leads
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LED Character and Numeric
Manufacturer		Broadcom
Series
Packaging		Tube
Part Status		Obsolete
Package / Case		14-DIP (0.300", 7.62mm), 10 Leads
Color		Red
Display Type		7-Segment
Size / Dimension		0.750" H x 0.400" W x 0.180" D (19.05mm x 10.16mm x 4.57mm)
Number of Characters		1
Millicandela Rating		0.8mcd
Common Pin		Common Cathode
Digit/Alpha Size		0.30" (7.62mm)
Voltage - Forward (Vf) (Typ)		2.1V
Current - Test		20mA
Wavelength - Peak		635nm
Power Dissipation (Max)		105mW

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Mult Devices 31/Jul/2017

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

Obsolete

This product is no longer manufactured.
