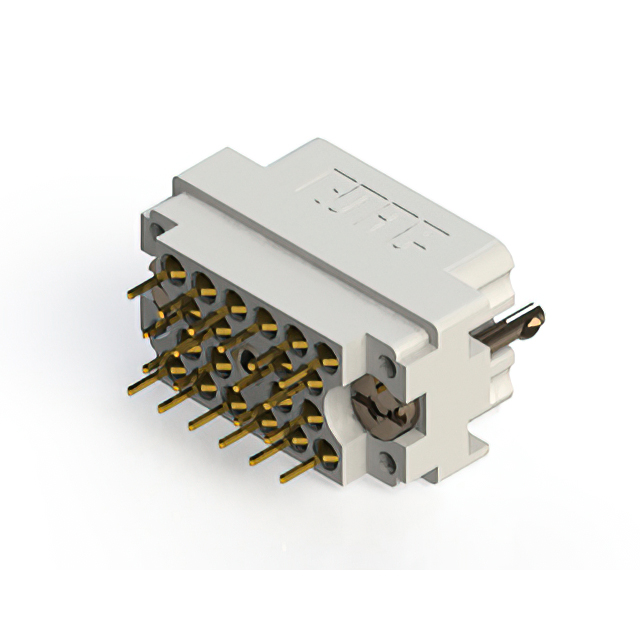

516-020-520-302 _ Specialized_Backplane Connectors_Connectors, Interconnects

Part Number	516-020-520-302
Manufacturer	EDAC Inc.
Other Part Numbers	516-020-520-302-ND
Description	CONN PLUG RACK & PNL 20P PNL MT
Detailed Description	20 Connector Plug, Hermaphroditic Contacts Through Hole Gray Rack and Panel
Manufacturer Standard Lead Time	18 weeks

Category		Connectors, Interconnects Backplane Connectors Specialized
Manufacturer		EDAC Inc.
Series		516
Packaging		Bulk
Part Status		Active
Features		Jackscrew, Guide Pin
Connector Type		Plug, Hermaphroditic Contacts
Contact Finish		Gold
Color		Gray
Current Rating (Amps)		8.5A
Mounting Type		Through Hole
Number of Positions		20
Pitch		0.150" (3.81mm)
Number of Rows		4
Operating Temperature		-40°C ~ 105°C
Number of Positions Loaded		All
Termination		Solder
Connector Usage		Backplane
Connector Style		Rack and Panel
Contact Finish Thickness		10.0µin (0.25µm)
Material Flammability Rating		UL94 V-0
Number of Columns		10

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
