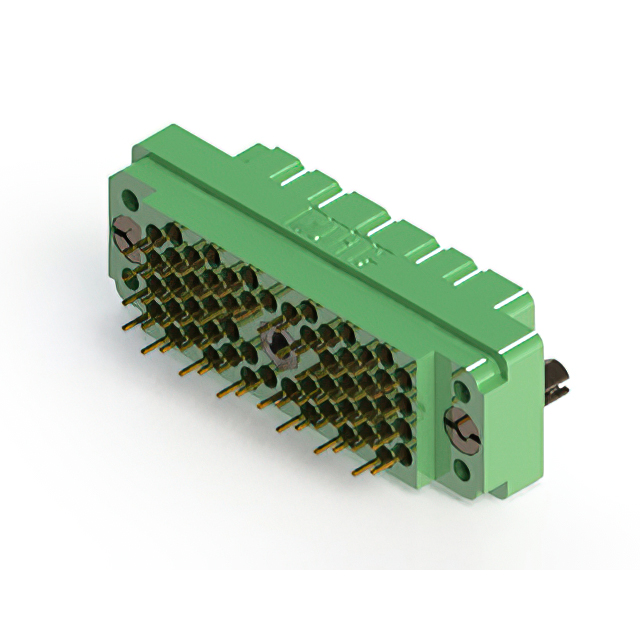

516-056-520-202 _ Specialized_Backplane Connectors_Connectors, Interconnects

Part Number	516-056-520-202
Manufacturer	EDAC Inc.
Other Part Numbers	516-056-520-202-ND
Description	CONN RCPT RACK & PNL 56P PNL MT
Detailed Description	56 Connector Receptacle, Hermaphroditic Contacts Through Hole Green Rack and Panel
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Backplane Connectors Specialized
Manufacturer		EDAC Inc.
Series		516
Packaging		Tray
Part Status		Active
Features		Jackscrew, Guide Pin
Connector Type		Receptacle, Hermaphroditic Contacts
Contact Finish		Gold
Color		Green
Current Rating (Amps)		8.5A
Mounting Type		Through Hole
Number of Positions		56
Pitch		0.150" (3.81mm)
Number of Rows		9
Operating Temperature		-40°C ~ 125°C
Number of Positions Loaded		All
Termination		Solder
Connector Usage		Backplane
Connector Style		Rack and Panel
Contact Finish Thickness		10.0µin (0.25µm)
Material Flammability Rating		UL94 V-0
Number of Columns		14

RESOURCE TYPE		LINK
Datasheets		516-056-520-202
Datasheets		Interconnect Solutions Brochure
Datasheets		EDAC RoHS
Datasheets		516-056-520-202 Drawing

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
