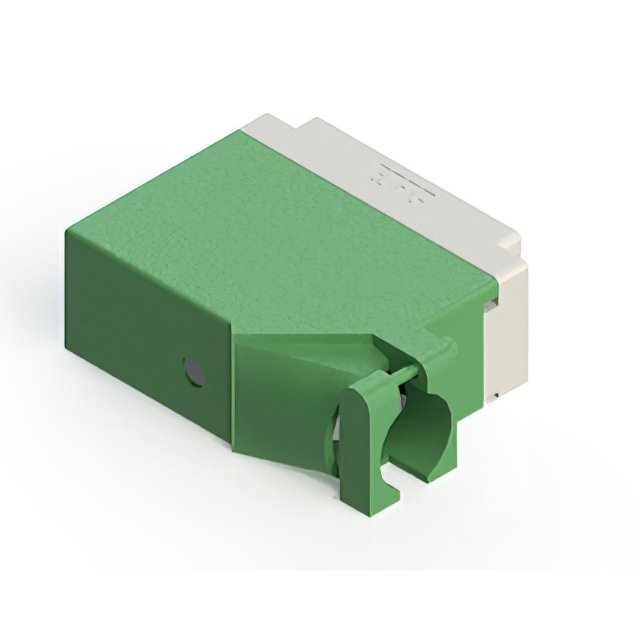

516-090-501-320 _ Specialized_Backplane Connectors_Connectors, Interconnects

Part Number	516-090-501-320
Manufacturer	EDAC Inc.
Other Part Numbers	151-516-090-501-320-ND 151-516-090-501-320
Description	516 SERIES RACK & PANEL CONNECTO
Detailed Description	90 Connector Plug, Hermaphroditic Contacts Free Hanging (In-Line) Gray Rack and Panel
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Backplane Connectors Specialized
Manufacturer		EDAC Inc.
Series		516
Packaging		Bulk
Part Status		Active
Features		Jackscrew, Guide Pin
Connector Type		Plug, Hermaphroditic Contacts
Contact Finish		Gold
Color		Gray
Current Rating (Amps)		8.5A
Mounting Type		Free Hanging (In-Line)
Number of Positions		90
Pitch		0.150" (3.81mm)
Number of Rows		13
Operating Temperature		-40°C ~ 105°C
Number of Positions Loaded		All
Termination		Solder
Connector Usage		Backplane
Connector Style		Rack and Panel
Contact Finish Thickness		10.0µin (0.25µm)
Material Flammability Rating		UL94 V-0
Number of Columns		15

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8538.90.8180
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
