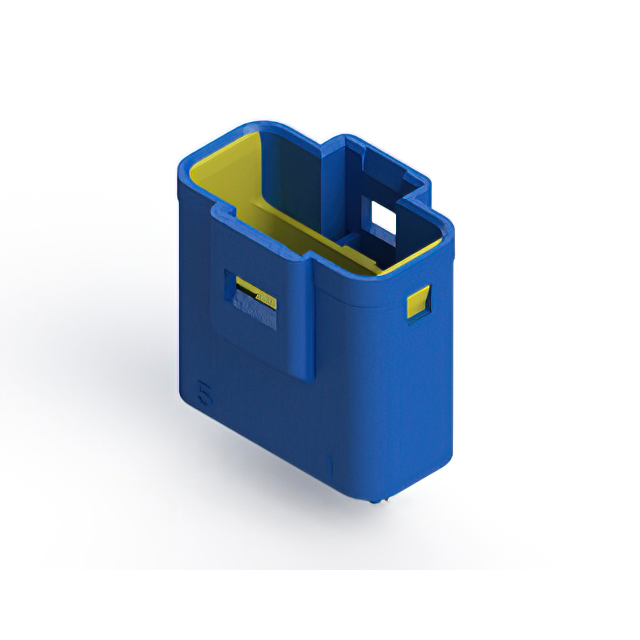

560-005-420-301 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	560-005-420-301
Manufacturer	EDAC Inc.
Other Part Numbers	151-1553-ND 151-1553
Description	CONN HEADER VERT 5POS 2.5MM
Detailed Description	Connector Header Through Hole 5 position 0.098" (2.50mm)
Manufacturer Standard Lead Time	18 weeks

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		EDAC Inc.
Series		560
Packaging		Bulk
Part Status		Active
Connector Type		Header
Voltage Rating		250V
Current Rating (Amps)		3A
Mounting Type		Through Hole
Number of Positions		5
Number of Rows		1
Style		Board to Cable/Wire
Operating Temperature		-40°C ~ 105°C
Applications		Automotive, General Purpose
Contact Type		Male Pin
Fastening Type		Latch Holder
Number of Positions Loaded		All
Termination		Solder
Ingress Protection		IP67
Material Flammability Rating		UL94 V-0
Contact Material		Brass
Insulation Color		Blue
Pitch - Mating		0.098" (2.50mm)
Contact Finish - Mating		Tin
Contact Finish - Post		Tin
Contact Shape		Circular
Insulation Height		0.610" (15.49mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Polybutylene Terephthalate (PBT)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
