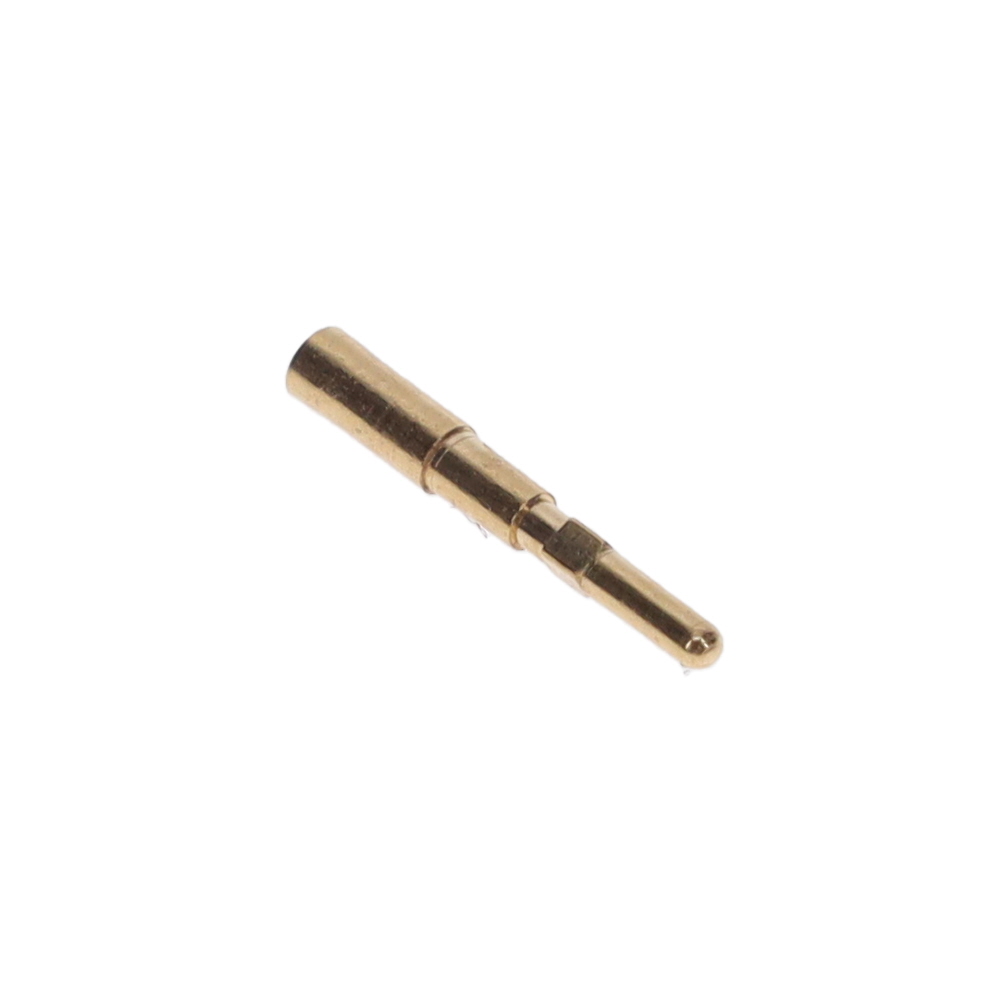

6192-0-15-15-21-27-04-0

6192-0-15-15-21-27-04-0

Part Number	6192-0-15-15-21-27-04-0
Manufacturer	Mill-Max
Other Part Numbers	6192-015152127040-ND 6192015152127040 6192-015152127040
Description	CONN RECEPT PIN .015-.021" .125"
Detailed Description	Pin Receptacle Connector 0.015" ~ 0.022" (0.38mm ~ 0.56mm) Standard Tail Press-Fit
Manufacturer Standard Lead Time	5 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminals PC Pin Receptacles, Socket Connectors
Manufacturer		Mill-Max
Series		6192
Packaging		Bulk
Part Status		Active
Contact Finish		Gold
Operating Temperature		-55°C ~ 125°C
Flange Diameter		0.041" (1.04mm)
Length - Overall		0.275" (6.99mm)
Termination		Press-Fit
Mounting Hole Diameter		0.032" (0.81mm)
Contact Finish Thickness		30.0µin (0.76µm)
Contact Material		Beryllium Copper
Tail Type		Standard Tail
Accepts Pin Diameter		0.015" ~ 0.022" (0.38mm ~ 0.56mm)
Pin Hole Diameter		0.031" (0.79mm)
Tail Diameter		0.025" (0.64mm) Square
Socket Depth		0.135" (3.43mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 999

Can ship immediately.

Bulk

QUANTITY	UNIT PRICE	EXT PRICE
1	$1.37	$1.37
10	$1.16	$11.60
100	$1.04	$104.00
1,000	$0.75	$750.00
5,000	$0.66	$3,300.00
10,000	$0.63	$6,300.00
