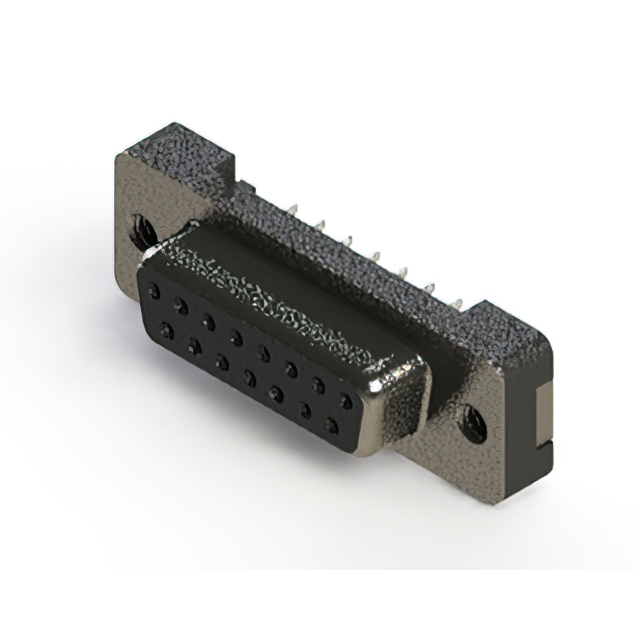

628-015-220-012 _ D-Sub Connector Assemblies_D-Sub, D-Shaped Connectors_Connectors, Interconnects

Part Number	628-015-220-012
Manufacturer	EDAC Inc.
Other Part Numbers	628-015-220-012-ND
Description	CONN D SUB RCPT 15POS VERT PLAST
Detailed Description	15 Position D-Sub Receptacle, Female Sockets Connector
Datasheet	Datasheet

Category		Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Manufacturer		EDAC Inc.
Series		628 (Plastic)
Packaging		-
Part Status		Active
Features		Shielded
Connector Type		Receptacle, Female Sockets
Contact Finish		Gold
Color		Black
Current Rating (Amps)		3A per Contact
Mounting Type		Through Hole
Number of Positions		15
Number of Rows		2
Operating Temperature		-55°C ~ 85°C
Contact Type		Signal and Power
Flange Feature		Board Side (4-40)
Termination		Solder
Connector Style		D-Sub
Contact Finish Thickness		Flash
Material Flammability Rating		UL94 V-0
Dielectric Material		Polyester Thermoplastic
Shell Material, Finish		Steel, Nickel Plated
Contact Material		Phosphor Bronze
Shell Size, Connector Layout		2 (DA, A)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
