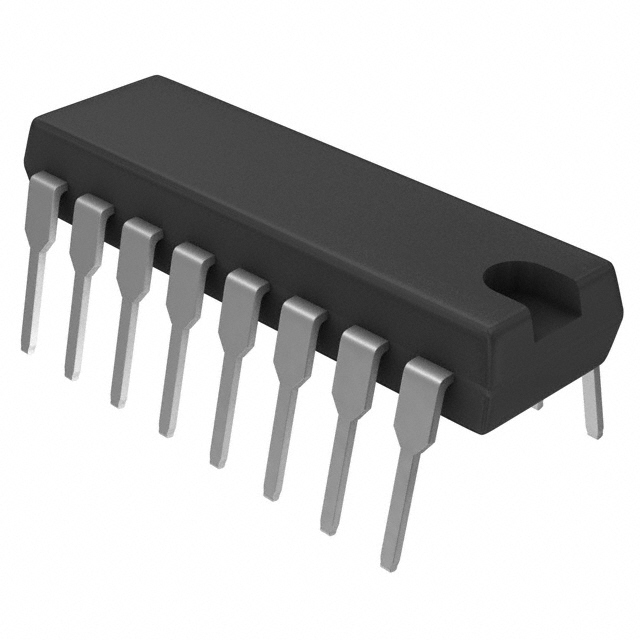

6N134#200 _ Logic Output Optoisolators_Optoisolators_Isolators

Part Number	6N134#200
Manufacturer	Broadcom
Other Part Numbers	6N134#200-ND
Description	OPTOISO 1.5KV 2CH OPEN COL 16DIP
Detailed Description	Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 1500VDC 2 Channel 1kV/µs CMTI 16-DIP
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Logic Output Optoisolators
Manufacturer		Broadcom
Series
Packaging		Tube
Part Status		Active
Package / Case		16-DIP (0.300", 7.62mm)
Output Type		Open Collector, Schottky Clamped
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 125°C
Voltage - Supply		4.5V ~ 5.5V
Voltage - Forward (Vf) (Typ)		1.55V
Data Rate		10MBd
Input Type		DC
Voltage - Isolation		1500VDC
Current - DC Forward (If) (Max)		20mA
Inputs - Side 1/Side 2		2/0
Supplier Device Package		16-DIP
Rise / Fall Time (Typ)		35ns, 35ns
Common Mode Transient Immunity (Min)		1kV/µs
Propagation Delay tpLH / tpHL (Max)		100ns, 100ns
Number of Channels		2
Current - Output / Channel		25 mA

RESOURCE TYPE		LINK
Datasheets		IC Change 05/Dec/2019

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant
