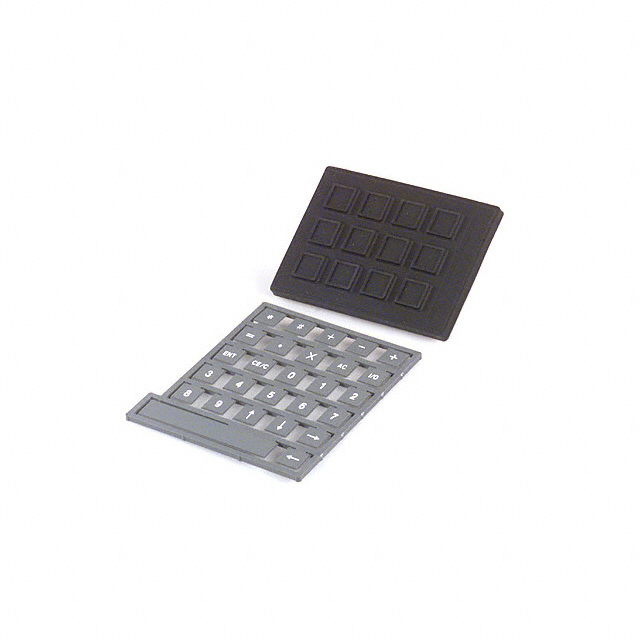

70120203

70120203

Part Number	70120203
Manufacturer	Storm Interface
Other Part Numbers	MGR1112-ND MGR1112-NDR MGR1112 70120201 70120202
Description	SWITCH KEYPAD 12KEY 0.05A 24V
Detailed Description	Keypad Switch 12 Rubber Overlay Keys Conductive Rubber Contacts Matrix Output Non-Illuminated 0.05A @ 24VDC
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Keypad Switches
Manufacturer		Storm Interface
Series		700
Packaging		Bulk
Part Status		Active
Features		Black Housing
Output Type		Matrix
Number of Keys		12
Mounting Type		Panel Mount, Front or Rear
Switch Type		Conductive Rubber
Operating Temperature		-55°C ~ 125°C
Termination Style		Pin Header
Legend		Customizable (Included)
Illumination		Non-Illuminated
Contact Rating @ Voltage		0.05A @ 24VDC
Ingress Protection		IP67 - Dust Tight, Waterproof
Legend Type		Interchangeable
Key Type		Rubber Overlay
Matrix (Columns x Rows)		3 x 4
Legend Color		White
Key Color		Gray

Documents & Media

RESOURCE TYPE		LINK
Datasheets		70120203
Datasheets		700, 900 Series Legend Tile Library

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8471.60.2000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 114

Can ship immediately.
