721-235/001-040 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	721-235/001-040
Manufacturer	WAGO
Other Part Numbers	2946-721-235/001-040-ND 2943-721-235/001-040 0721-0235/0001-0040 0721-235/001-040 2946-721-235/001-040 0721235/001040 721235/001040 51149531 2943-721-235/001-040-ND
Description	THT MALE HEADER; 1.0 X 1.0 MM SO

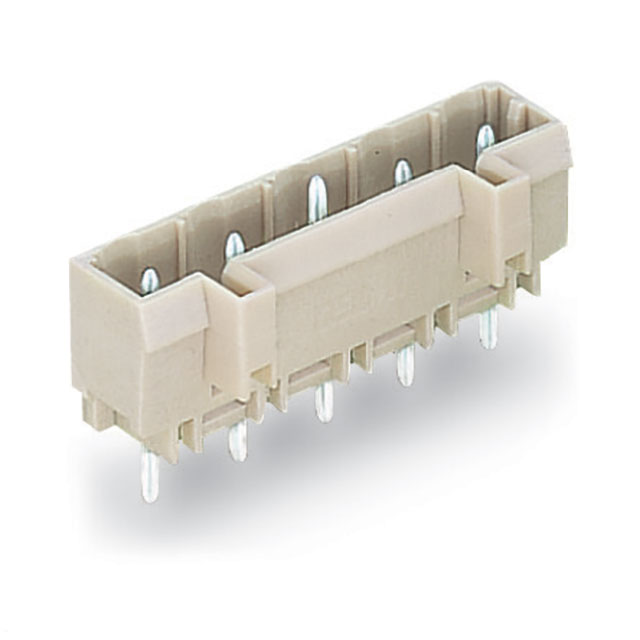

Detailed Description	5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.295" (7.50mm) Vertical Through Hole
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		MCSMIDI
Packaging		Box
Part Status		Active
Color		Gray
Mounting Type		Through Hole
Number of Positions		5
Pitch		0.295" (7.50mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-60°C ~ 100°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		12A
Number of Levels		1
Positions Per Level		5
Contact Material		Electrolytic Copper
Header Orientation		Vertical
Housing Material		Polyamide (PA66), Nylon 6/6
Contact Mating Finish		Tin
Contact Tail Length		0.197" (5.00mm)
Insulation Height		0.472" (12.00mm)
Current - UL		10 A
Voltage - IEC		630 V
Voltage - UL		600 V

RESOURCE TYPE		LINK
Datasheets		721-235/001-040

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
