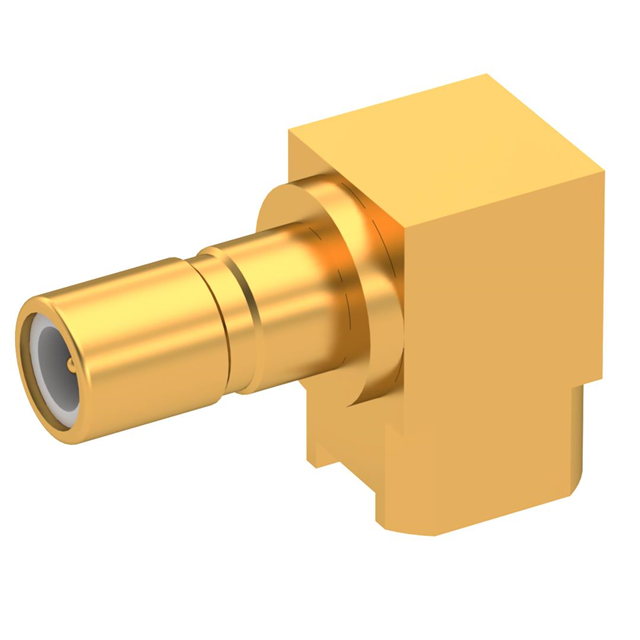

7210-1511-015 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	7210-1511-015
Manufacturer	Radiall USA, Inc.
Other Part Numbers	2201-7210-1511-015-ND 2201-7210-1511-015
Description	SSMB M RA SMT
Detailed Description	SSMB Connector Jack, Male Pin 50 Ohms Surface Mount, Right Angle Solder
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Radiall USA, Inc.
Series
Packaging		Bulk
Part Status		Active
Connector Type		Jack, Male Pin
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Surface Mount, Right Angle
Operating Temperature		-65°C ~ 165°C
Fastening Type		Snap-On
Connector Style		SSMB
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Brass
Housing Color		Gold
Mating Cycles		500
Shield Termination		Solder
Center Contact Material		Beryllium Copper
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		12.4 GHz
Number of Ports		1
Voltage Rating		250 V

RESOURCE TYPE		LINK
Datasheets		7210-1511-015

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		Not applicable
