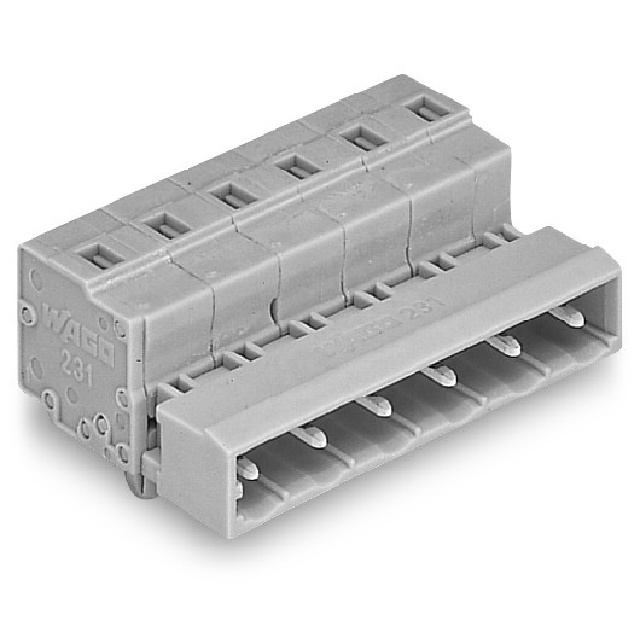

731-603/018-000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	731-603/018-000
Manufacturer	WAGO
Other Part Numbers	2946-731-603/018-000-ND 51111624 2943-731-603/018-000-ND 0731-603/018-000 0731-0603/0018-0000 0731603/018000 2943-731-603/018-000 731603/018000 2946-731-603/018-000
Description	1-CONDUCTOR MALE CONNECTOR; SNAP
Detailed Description	3 Position Terminal Block Plug, Male Pins 0.295" (7.50mm) 180° Panel Mount
Manufacturer Standard Lead Time	12 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		MCSMIDI Classic
Packaging		Box
Part Status		Active
Features		Board Lock
Color		Gray
Mounting Type		Panel Mount
Number of Positions		3
Pitch		0.295" (7.50mm)
Type		Plug, Male Pins
Operating Temperature		-60°C ~ 100°C
Termination Style		Screwless - Push-In Spring
Material Flammability Rating		UL94 V-0
Current - IEC		12A
Number of Levels		1
Wire Gauge or Range - AWG		12-28 AWG
Wire Gauge or Range - mm²		0.08-2.5mm²
Positions Per Level		3
Contact Material		Electrolytic Copper
Plug Wire Entry		180°
Housing Material		Polyamide (PA66), Nylon 6/6
Contact Mating Finish		Tin
Wire Strip Length		8-9mm
Insulation Height		0.563" (14.30mm)
Current - UL		15 A
Voltage - IEC		1 kV
Voltage - UL		600 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
