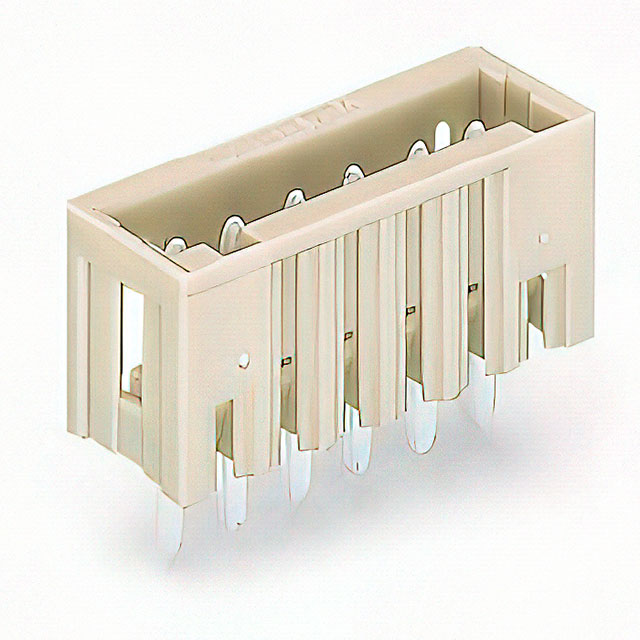

734-134/046-000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	734-134/046-000
Manufacturer	WAGO
Other Part Numbers	2946-734-134/046-000-ND 2943-734-134/046-000 734134/046000 2946-734-134/046-000 2943-734-134/046-000-ND 0734134/046000 51199876 0734-0134/0046-0000 0734-134/046-000
Description	THT MALE HEADER; 1.0 X 1.0 MM SO
Detailed Description	4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		MCSMINI
Packaging		Box
Part Status		Active
Color		Gray
Mounting Type		Through Hole
Number of Positions		4
Pitch		0.138" (3.50mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-60°C ~ 100°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		10A
Number of Levels		1
Positions Per Level		4
Contact Material		Electrolytic Copper
Header Orientation		Vertical
Housing Material		Polyamide (PA66), Nylon 6/6
Contact Mating Finish		Tin
Contact Tail Length		0.177" (4.50mm)
Insulation Height		1.122" (28.50mm)
Current - UL		10 A
Voltage - IEC		320 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		734-134/046-000

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
