734-264/105-604/997-405 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	734-264/105-604/997-405
Manufacturer	WAGO
Other Part Numbers	2946-734-264/105-604/997-405TR-ND 734264/105604/997405 0734264/105604/997405 2946-734-264/105-604/997-405TR 51216400 0734-264/105-604/997-405 2943-734-264/105-604/997-405 0734-0264/0105-0604/0997-0405 2946-734-264/105-604/997-405-ND 2946-734-264/105-604/997-405 2943-734-264/105-604/997-405-ND
Description	THR MALE HEADER; 1.0 X 1.0 MM SO
Detailed Description	4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		MCSMINI

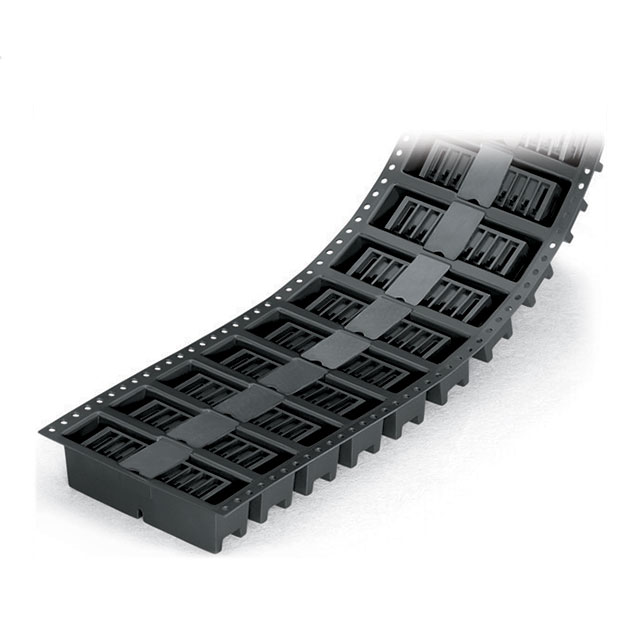

Packaging		Tape & Reel (TR)
Part Status		Active
Color		Black
Mounting Type		Through Hole
Number of Positions		4
Pitch		0.150" (3.81mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-60°C ~ 100°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		10A
Number of Levels		1
Positions Per Level		4
Contact Material		Electrolytic Copper
Header Orientation		90°, Right Angle
Housing Material		Polyphthalamide (PPA), Glass Filled
Contact Mating Finish		Tin
Contact Tail Length		0.094" (2.40mm)
Insulation Height		1.122" (28.50mm)
Current - UL		10 A
Voltage - IEC		320 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		734-264/105-604/997-405

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

QUANTITY	UNIT PRICE	EXT PRICE
280	$2.16	$604.80
