74ACTQ273SC _ Flip Flops_Logic_Integrated Circuits (ICs)

Part Number	74ACTQ273SC
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	74ACTQ273SC-ND 74ACTQ273SC-NDR
Description	IC FF D-TYPE SNGL 8BIT 20SOIC
Detailed Description	Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-SOIC (0.295", 7.50mm Width)
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Logic Flip Flops
Manufacturer		Sanyo Semiconductor/onsemi
Series		74ACTQ
Packaging		Tube
Part Status		Obsolete

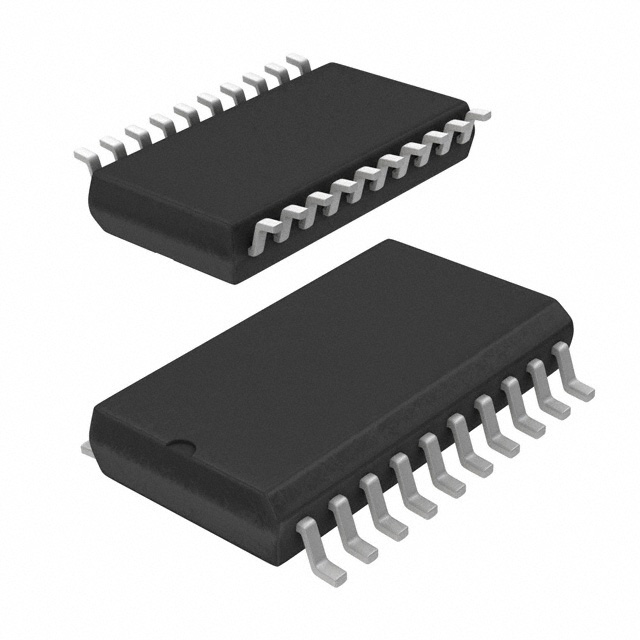

Package / Case		20-SOIC (0.295", 7.50mm Width)
Output Type		Non-Inverted
Mounting Type		Surface Mount
Number of Elements		1
Function		Master Reset
Type		D-Type
Operating Temperature		-40°C ~ 85°C (TA)
Voltage - Supply		4.5V ~ 5.5V
Current - Quiescent (Iq)		40 µA
Current - Output High, Low		24mA, 24mA
Trigger Type		Positive Edge
Clock Frequency		189 MHz
Input Capacitance		4.5 pF
Supplier Device Package		20-SOIC
Max Propagation Delay @ V, Max CL		8.5ns @ 5V, 50pF
Number of Bits per Element		8

RESOURCE TYPE		LINK
Datasheets		onsemi RoHS

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected

This product is no longer manufactured.
