74LCX32MTR

Part Number
74LCX32MTR
Manufacturer STMicroelectronics
Other Part Numbers
497-1063-2-ND
497-1063-1-ND
497-1063-1
497-1063-1-NDR
-497-1063-6
-497-1063-2
497-1063-2
-497-1063-1
497-1063-6
497-1063-6-NDR
Description IC GATE OR 4CH 2-INP 14SO
Detailed Description OR Gate IC 4 Channel 14-SO

Product Attributes

Category
Manufacturer STMicroelectronics
Series
74LCX
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Obsolete

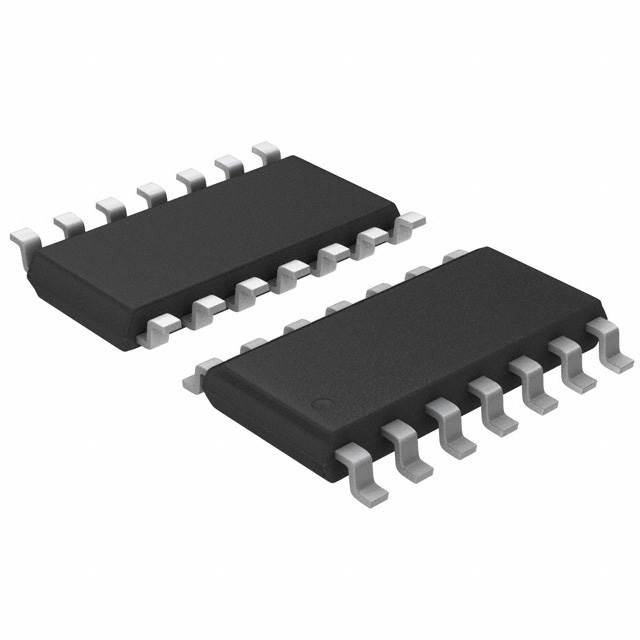

Package / Case 14-SOIC (0.154", 3.90mm Width)
Mounting Type Surface Mount
Logic Type OR Gate
Operating Temperature -40°C ~ 85°C
Voltage - Supply 2V ~ 3.6V
Current - Output High, Low 24mA, 24mA
Number of Inputs 2
Supplier Device Package 14-SO
Input Logic Level - High 2V
Input Logic Level - Low 0.8V
Max Propagation Delay @ V, Max CL 5.2ns @ 3.3V, 50pF
Number of Circuits 4
Current - Quiescent (Max) 10 µA

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
