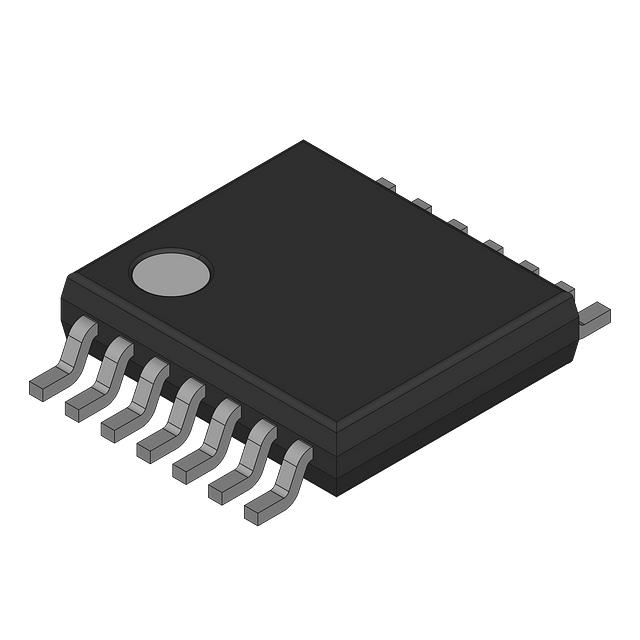

74VHC04MTCX

74VHC04MTCX

Part Number	74VHC04MTCX
Manufacturer	Fairchild Semiconductor
Other Part Numbers	2156-74VHC04MTCX-ND 2156-74VHC04MTCX FAIFSC74VHC04MTCX
Description	IC INVERTER 6CH 1-INP 14TSSOP
Detailed Description	Inverter IC 6 Channel 14-TSSOP

Product Attributes

Category		Integrated Circuits (ICs) Logic Gates and Inverters
Manufacturer		Fairchild Semiconductor
Series		74VHC
Packaging		Bulk
Part Status		Active
Package / Case		14-TSSOP (0.173", 4.40mm Width)
Mounting Type		Surface Mount
Logic Type		Inverter
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		2V ~ 5.5V
Current - Output High, Low		8mA, 8mA
Number of Inputs		1
Supplier Device Package		14-TSSOP
Input Logic Level - High		1.5V
Input Logic Level - Low		0.5V
Max Propagation Delay @ V, Max CL		7.5ns @ 5V, 50pF
Number of Circuits		6
Current - Quiescent (Max)		2 µA

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
