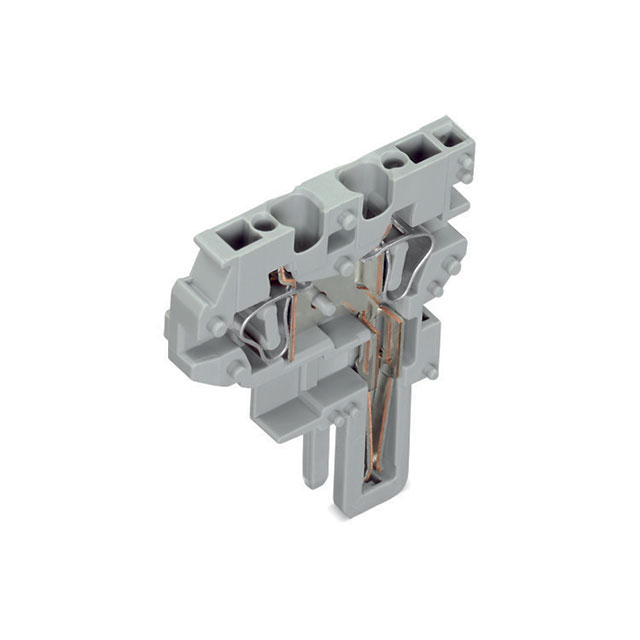

769-505 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	769-505
Manufacturer	WAGO
Other Part Numbers	2946-769-505-ND 2946-769-505 7690505 2943-769-505-ND 2943-769-505 0769-0505 0769505 0769-505 769505
Description	CENTER MODULE FOR 2-CONDUCTOR FE
Detailed Description	1 (Mate), 2 (Input) Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	12 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		X-COM®
Packaging		Bag
Part Status		Active
Features		Retention Latches (Non-Wire Side)
Color		Gray
Mounting Type		Free Hanging (In-Line)
Number of Positions		1 (Mate), 2 (Input)
Pitch		0.197" (5.00mm)
Type		Plug, Female Sockets
Termination Style		Screwless - Spring Cage, Tension Clamp
Material Flammability Rating		UL94 V-0
Current - IEC		32A
Number of Levels		1 (Mate), 2 (Input)
Wire Gauge or Range - AWG		12-28 AWG
Wire Gauge or Range - mm²		0.08-4mm²
Positions Per Level		1 (Mate), 2 (Input)
Contact Material		Copper
Plug Wire Entry		180°
Housing Material		Polyamide (PA66), Nylon 6/6
Wire Strip Length		8-9mm
Insulation Height		1.413" (35.89mm)
Voltage - IEC		500 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
