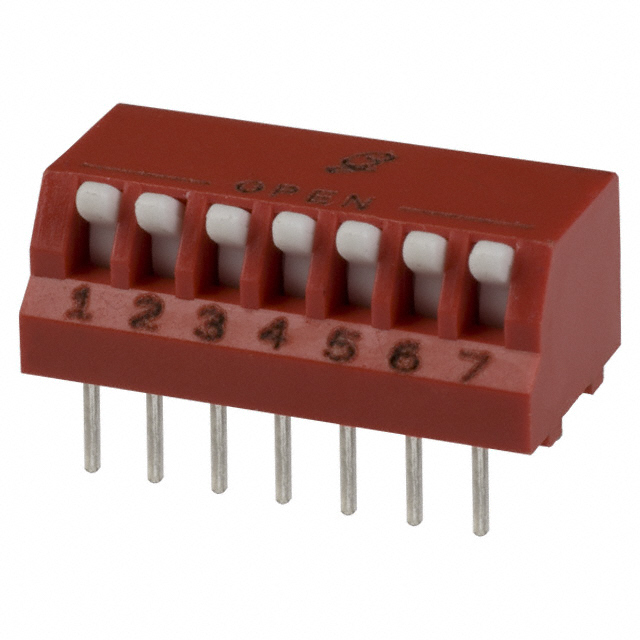

Part Number |
76PSB07
|
---|---|
Manufacturer | Grayhill, Inc. |
Other Part Numbers |
GH1218-ND
GH1218
|
Description | SWITCH PIANO DIP SPST 0.15A 30V |
Detailed Description | Dip Switch SPST 7 Position Through Hole, Right Angle Piano Actuator 150mA 30VDC |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Grayhill, Inc. | |
Series |
76
|
|
Packaging |
Bag
|
|
Part Status | Obsolete | |
Contact Finish | Gold | |
Voltage Rating | 30VDC | |
Current Rating (Amps) | 150mA | |
Mounting Type | Through Hole, Right Angle | |
Pitch | 0.100" (2.54mm), Full | |
Circuit | SPST | |
Operating Temperature | -40°C ~ 85°C | |
Termination Style | PC Pin | |
Actuator Type | Piano | |
Height Above Board | 0.301" (7.65mm) | |
Actuator Level | Raised | |
Washable | No | |
Contact Material | Copper Alloy | |
Number of Positions | 7 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 76PSB07 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.50.9065 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS non-compliant |
