770-1162 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	770-1162
Manufacturer	WAGO
Other Part Numbers	2946-770-1162-ND 7701162 2946-770-1162 2943-770-1162 2943-770-1162-ND 07701162 0770-1162

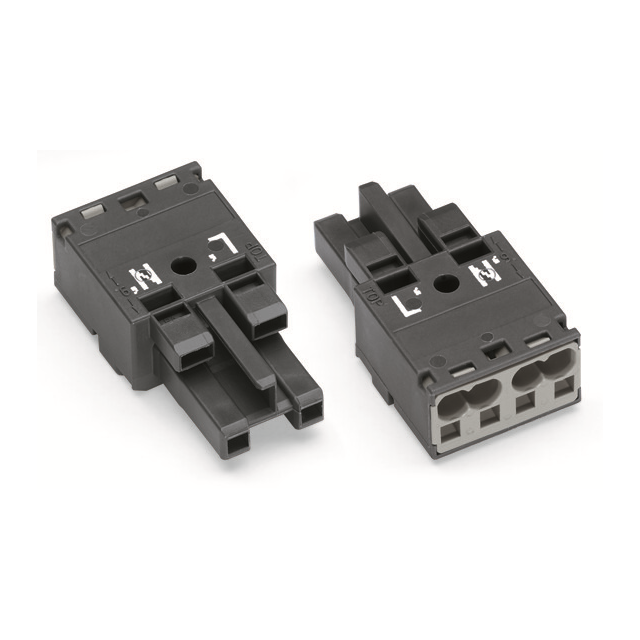

Description	SOCKET 2-POLE, DARK GRAY
Detailed Description	2 Position Terminal Block Plug, Female Sockets 0.394" (10.00mm) 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	12 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		WINSTA® MIDI
Packaging		Box
Part Status		Active
Features		Retention Latches (Non-Wire Side)
Color		Gray
Mounting Type		Free Hanging (In-Line)
Number of Positions		2
Pitch		0.394" (10.00mm)
Type		Plug, Female Sockets
Operating Temperature		-35°C ~ 85°C
Termination Style		Screwless - Push-In Spring
Current - IEC		25A
Number of Levels		1
Wire Gauge or Range - AWG		12-20 AWG
Wire Gauge or Range - mm²		0.5-4mm²
Positions Per Level		2
Plug Wire Entry		180°
Current - UL		23 A
Voltage - IEC		250 V
Voltage - UL		600 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
