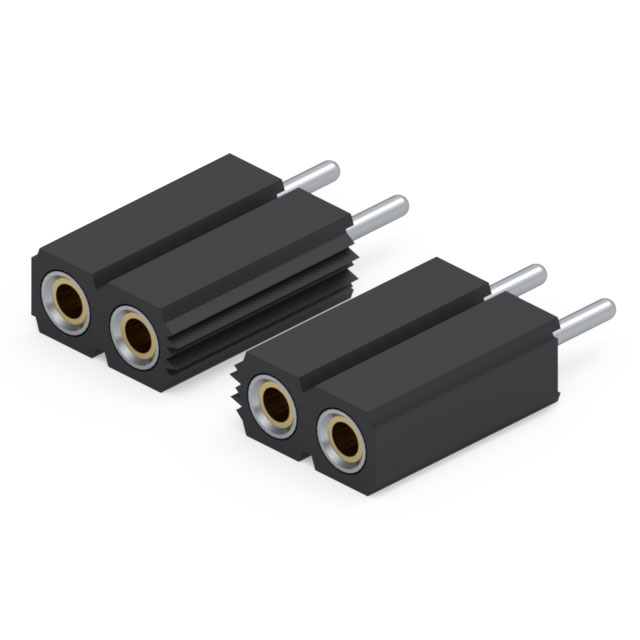

801-43-050-10-001000 _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	801-43-050-10-001000
Manufacturer	Mill-Max
Other Part Numbers	ED6350-50-ND ED6350 8014305010001000 ED6350-ND ED6350-50
Description	CONN RCPT 50POS 0.1 GOLD PCB
Detailed Description	50 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Manufacturer Standard Lead Time	3 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Mill-Max
Series		801
Packaging		Tube
Part Status		Active
Connector Type		Receptacle
Current Rating (Amps)		4.5A
Mounting Type		Through Hole
Number of Positions		50
Style		Board to Board
Operating Temperature		-55°C ~ 125°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Beryllium Copper
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		30.0µin (0.76µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		200.0µin (5.08µm)
Contact Shape		Circular
Contact Length - Post		0.118" (3.00mm)
Insulation Height		0.276" (7.00mm)
Insulation Material		Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Number of Rows		1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
