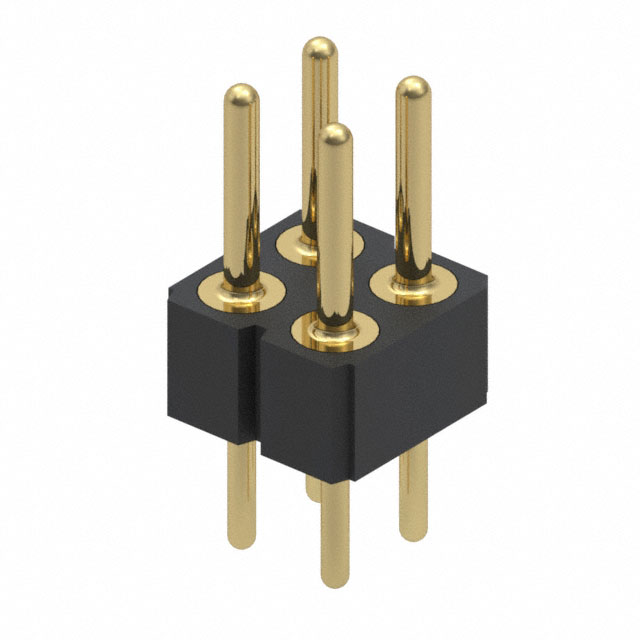

802-10-004-10-001000 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	802-10-004-10-001000
Manufacturer	Mill-Max
Other Part Numbers	802-10-004-10-001-ND 802-1000410001000INACTIVE 802-10-004-10-001 802-1000410001000 8021000410001 Q1863806 Q1159784A 8021000410001000 802-1000410001000-ND
Description	HEADER DUAL ROW STRAIGHT
Detailed Description	Connector Header Through Hole 4 position 0.100" (2.54mm)
Manufacturer Standard Lead Time	2 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Mill-Max
Series		802
Packaging		Tube
Part Status		Active
Connector Type		Header
Mounting Type		Through Hole
Number of Positions		4
Number of Rows		2
Style		Board to Board
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Contact Material		Brass Alloy
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		10.0µin (0.25µm)
Contact Finish - Post		Gold
Contact Finish Thickness - Post		10.0µin (0.25µm)
Contact Shape		Circular
Contact Length - Post		0.118" (3.00mm)
Insulation Height		0.110" (2.79mm)
Shrouding		Unshrouded
Overall Contact Length		0.438" (11.12mm)
Insulation Material		Polycyclohexylenedimethylene Terephthalate (PCT)
Row Spacing - Mating		0.100" (2.54mm)
Contact Length - Mating		0.195" (4.95mm)

RESOURCE TYPE		LINK
Datasheets		RoHS Cert

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
