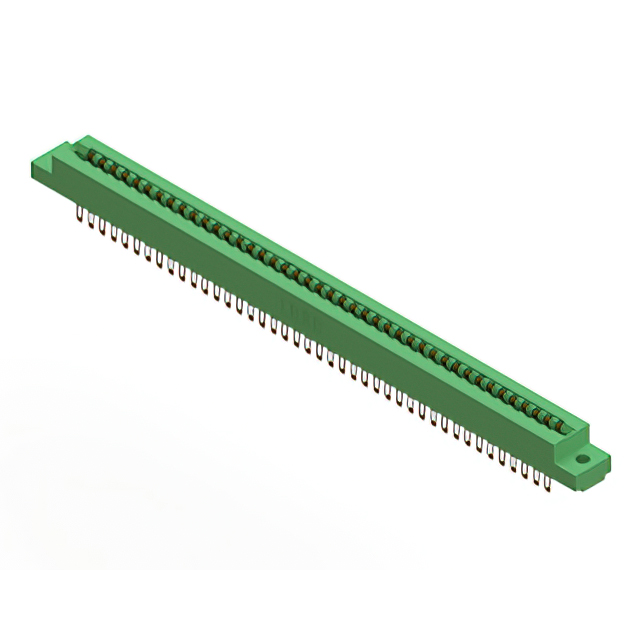

807-084-500-202 _ Edgeboard Connectors_Card Edge Connectors_Connectors, Interconnects

Part Number	807-084-500-202
Manufacturer	EDAC Inc.
Other Part Numbers	151-807-084-500-202-ND 151-807-084-500-202
Description	CONN EDGE DUAL FMALE 84POS 0.156
Detailed Description	84 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Card Edge Connectors Edgeboard Connectors
Manufacturer		EDAC Inc.
Series		807
Packaging		Box
Part Status		Active
Gender		Female
Contact Finish		Gold
Color		Green
Mounting Type		Through Hole
Number of Positions		84
Pitch		0.156" (3.96mm)
Operating Temperature		-40°C ~ 125°C
Read Out		Dual
Contact Type		Semi Bellows
Card Type		Non Specified - Dual Edge
Card Thickness		0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature		Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination		Solder Eyelet(s)
Contact Finish Thickness		10.0µin (0.25µm)
Material - Insulation		Diallyl Phthalate (DAP)
Contact Material		Copper Alloy
Number of Positions/Bay/Row		42
Number of Rows		2
Termination Rows		2
