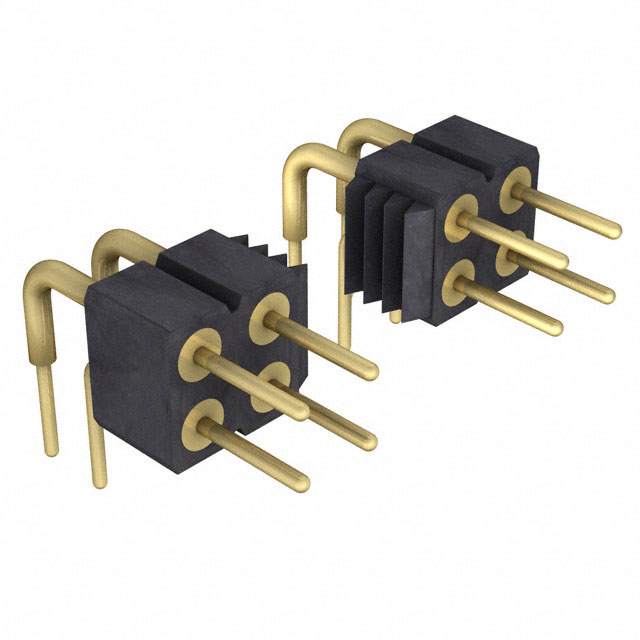

832-10-100-20-001101 _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	832-10-100-20-001101
Manufacturer	Preci-Dip
Other Part Numbers	1212-1779-ND 832-10-100-20-001101-ND 1212-1779
Description	CONN HEADER R/A 100P 2MM
Detailed Description	Connector Header Through Hole, Right Angle 100 position 0.079" (2.00mm)
Manufacturer Standard Lead Time	11 weeks

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Preci-Dip
Series		832
Packaging		Bulk
Part Status		Active
Connector Type		Header
Voltage Rating		150VDC
Current Rating (Amps)		3A
Mounting Type		Through Hole, Right Angle
Number of Positions		100
Number of Rows		2
Style		Board to Board
Operating Temperature		-55°C ~ 125°C
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Brass
Insulation Color		Black
Pitch - Mating		0.079" (2.00mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		10.0µin (0.25µm)
Contact Finish - Post		Gold
Contact Finish Thickness - Post		10.0µin (0.25µm)
Contact Shape		Circular
Contact Length - Post		0.126" (3.20mm)
Insulation Height		0.165" (4.20mm)
Shrouding		Unshrouded
Insulation Material		Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating		0.079" (2.00mm)
Contact Length - Mating		0.141" (3.60mm)

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
