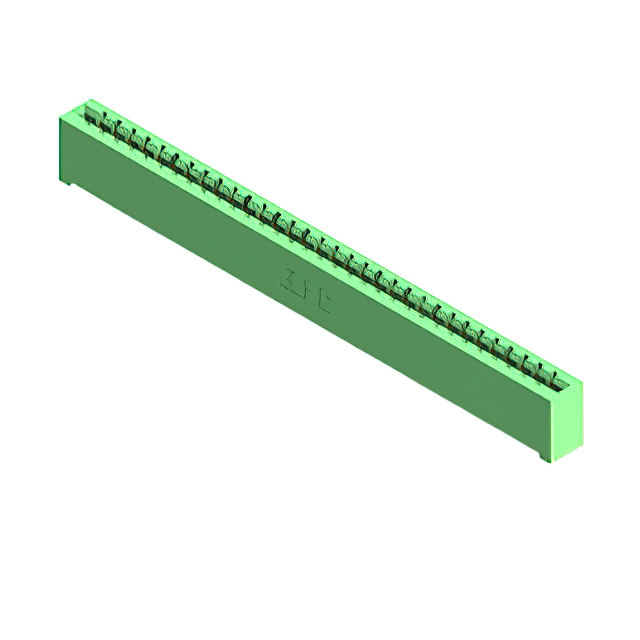

837-032-544-101 _ Edgeboard Connectors_Card Edge Connectors_Connectors, Interconnects

Part Number	837-032-544-101
Manufacturer	EDAC Inc.
Other Part Numbers	151-837-032-544-101-ND 151-837-032-544-101
Description	CONN EDGE SGL FMALE 32POS 0.156
Detailed Description	32 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Card Edge Connectors Edgeboard Connectors
Manufacturer		EDAC Inc.
Series		837
Packaging		Box
Part Status		Active
Gender		Female
Contact Finish		Gold
Color		Green
Mounting Type		Through Hole
Number of Positions		32
Pitch		0.156" (3.96mm)
Operating Temperature		-40°C ~ 125°C
Read Out		Single
Contact Type		Cantilever
Card Type		Non Specified - Single Edge
Card Thickness		0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Termination		Wire Wrap
Contact Finish Thickness		10.0µin (0.25µm)
Material - Insulation		Diallyl Phthalate (DAP)
Contact Material		Copper Alloy
Number of Positions/Bay/Row		32
Number of Rows		1
Termination Rows		1
