Part Number |
88226513
|
---|---|
Manufacturer | Crouzet |
Other Part Numbers |
966-1039-ND
966-1039
88226513-ND
|

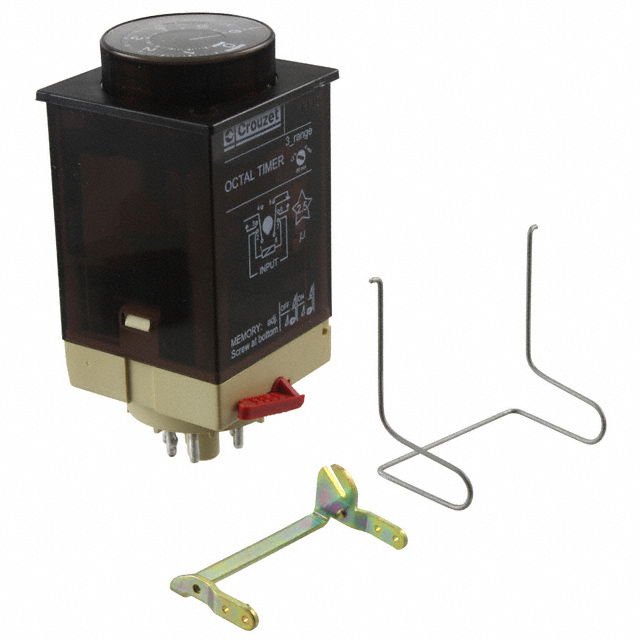

Description | RELAY TIME DELAY 12HR 5A 230V |
Detailed Description | Programmable (Multi-Function) Time Delay Relay SPST-NO (1 Form A), SPDT (1 Form C) 0.3 Min ~ 12 Hrs Delay 5A @ 230VAC Socketable |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Crouzet | |
Series |
88220
|
|
Packaging |
Box
|
|
Part Status | Obsolete | |
Delay Time | 0.3 Min ~ 12 Hrs | |
Mounting Type | Socketable | |
Function | Programmable (Multi-Function) | |
Circuit | SPST-NO (1 Form A), SPDT (1 Form C) | |
Termination Style | Plug In, 8 Pin (Octal) | |
Voltage - Supply | 115VAC | |
Contact Rating @ Voltage | 5A @ 230VAC | |
Relay Type | Mechanical Relay | |
Timing Adjustment Method | Hand Dial | |
Timing Initiate Method | Input Voltage |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | Multiple Devices Jun/2017 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8479.90.9596 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS Compliant |
