890-833 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	890-833
Manufacturer	WAGO
Other Part Numbers	2946-890-833-ND 890833 2943-890-833-ND 0890-0833 0890-833 2943-890-833 8900833 0890833 2946-890-833

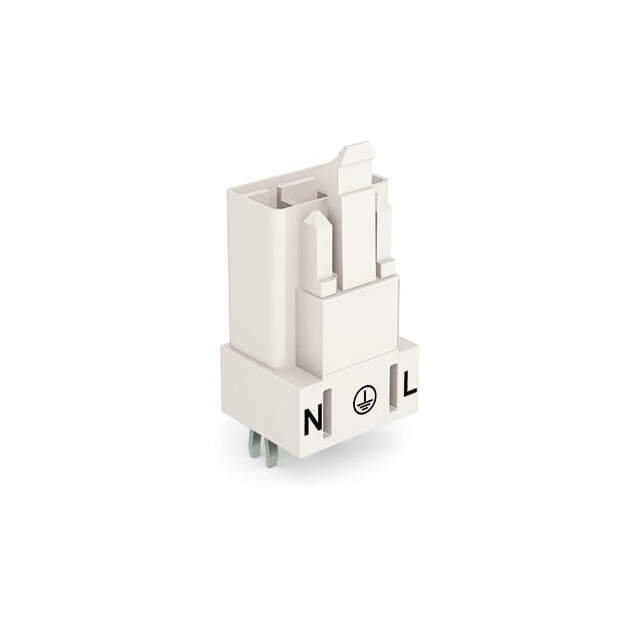

Description	PLUG FOR PCBS; STRAIGHT; 3-POLE;
Detailed Description	3 Position Terminal Block Header, Female Sockets 0.173" (4.40mm) Vertical Through Hole
Manufacturer Standard Lead Time	12 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		WINSTA® MINI
Packaging		Box
Part Status		Active
Features		Locking Feature
Color		White
Mounting Type		Through Hole
Number of Positions		3
Pitch		0.173" (4.40mm)
Type		Header, Female Sockets
Operating Temperature		-35°C ~ 85°C
Termination Style		Solder
Current - IEC		16A
Number of Levels		1
Wire Gauge or Range - AWG		16-22 AWG
Wire Gauge or Range - mm²		0.25-1.5mm²
Positions Per Level		3
Header Orientation		Vertical
Current - UL		14 A
Voltage - IEC		250 V
Voltage - UL		600 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

PACKAGING	QUANTITY	UNIT PRICE	EXT PRICE
Box	1	$3.04	$3.04
Total Amount: $3.04

QUANTITY	UNIT PRICE	EXT PRICE
1	$3.04	$3.04
