890-834 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	890-834
Manufacturer	WAGO
Other Part Numbers	2946-890-834-ND 890834 8900834 0890-0834 0890-834 2943-890-834-ND 0890834 2943-890-834 2946-890-834

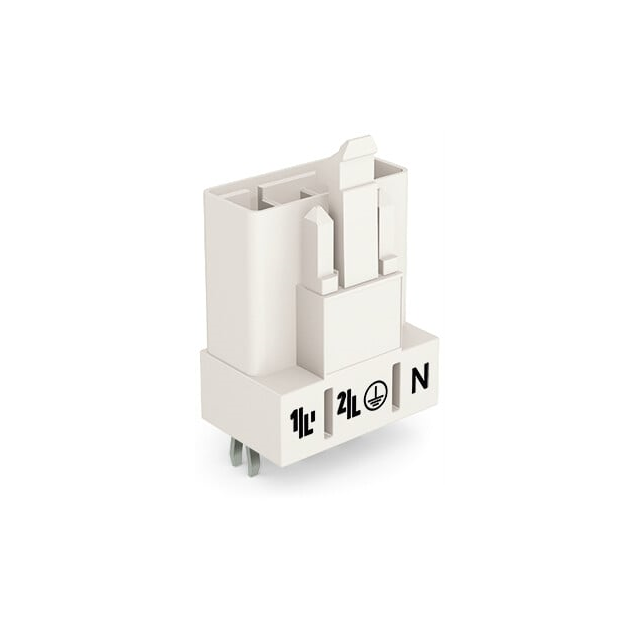

Description	PLUG FOR PCBS STRAIGHT 4-POLE
Detailed Description	4 Position Terminal Block Header, Female Sockets 0.173" (4.40mm) Vertical Through Hole
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		WINSTA® MINI
Packaging		Box
Part Status		Active
Features		Locking Feature
Color		White
Mounting Type		Through Hole
Number of Positions		4
Pitch		0.173" (4.40mm)
Type		Header, Female Sockets
Operating Temperature		-35°C ~ 85°C
Termination Style		Solder
Current - IEC		16A
Number of Levels		1
Wire Gauge or Range - AWG		16-22 AWG
Wire Gauge or Range - mm²		0.25-1.5mm²
Positions Per Level		4
Header Orientation		Vertical
Housing Material		Polyamide (PA66), Nylon 6/6
Wire Strip Length		9mm
Contact Tail Length		0.138" (3.50mm)
Insulation Height		1.118" (28.40mm)
Current - UL		12 A
Voltage - IEC		250 V
Voltage - UL		600 V

RESOURCE TYPE		LINK
Datasheets		890-834

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
