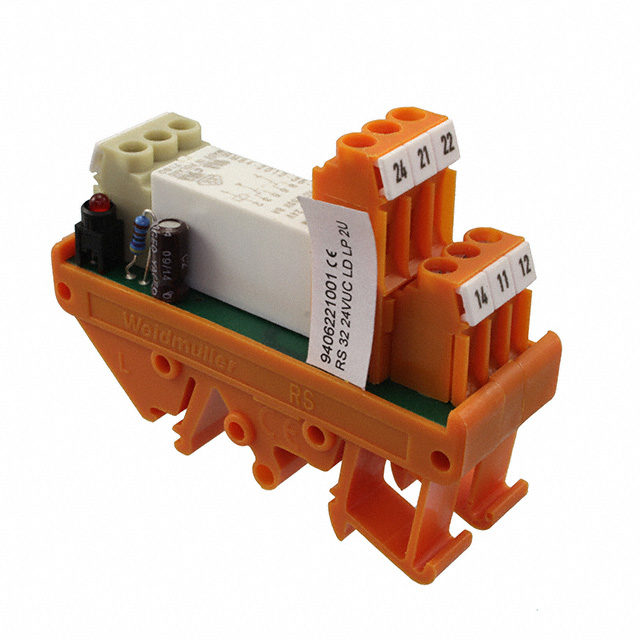

Part Number |
9406221001
|
---|---|
Manufacturer | Weidmuller |
Other Part Numbers |
281-6183-ND
281-6183
RS 32 24VAC/DC;DPDT;RED
RS 32 24VAC/DC DPDT
9406221001-NDR
9406221001-ND
|
Description | RELAY GEN PURPOSE DPDT 4A 24V |
Detailed Description | General Purpose Relay DPDT (2 Form C) 24VAC/DC Coil DIN Rail |
Category | ||
---|---|---|
Manufacturer | Weidmuller | |
Series |
RS
|
|
Packaging |
Bulk
|
|
Part Status | Obsolete | |
Features | Socket Included | |
Mounting Type | DIN Rail | |
Coil Voltage | 24VAC/DC | |
Operating Temperature | -25°C ~ 40°C | |
Termination Style | Screw Terminal | |
Approval Agency | CE | |
Relay Type | General Purpose | |
Coil Type | Non Latching | |
Contact Material | Silver Nickel (AgNi) | |
Contact Form | DPDT (2 Form C) | |
Contact Rating (Current) | 4 A | |
Switching Voltage | 250VAC - Max | |
Operate Time | 13 ms | |
Release Time | 10 ms | |
Load - Max Switching | 1000VA |
RESOURCE TYPE | LINK |
---|
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8536.41.0020 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS Compliant |
