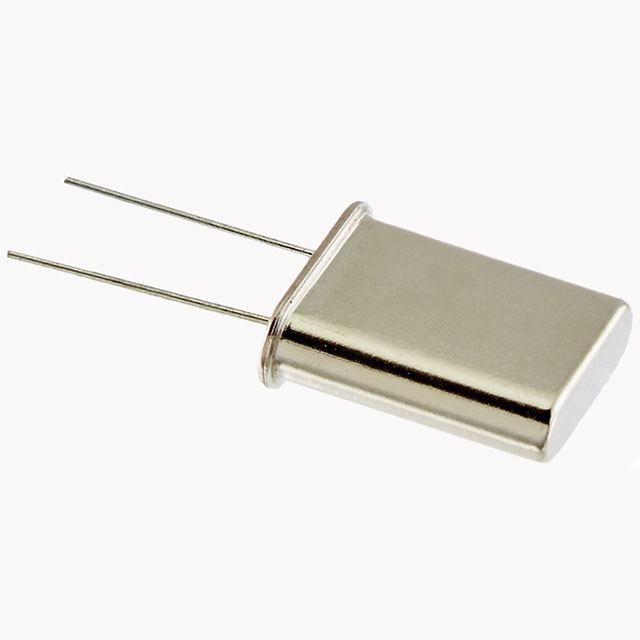

A-8.000-20

A-8.000-20

Part Number	A-8.000-20
Manufacturer	Raltron
Other Part Numbers	2151-A-8.000-20-ND -2344-A-8.000-20CT-ND -2344-A-8.000-20 2151-A-8.000-20
Description	CRYSTAL 8.0000MHZ 20PF TH
Detailed Description	8 MHz ±30ppm Crystal 20pF 30 Ohms HC-49/U
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Crystals, Oscillators, Resonators Crystals
Manufacturer		Raltron
Series		A
Packaging		Bulk
Part Status		Active
Package / Case		HC-49/U
Load Capacitance		20pF
Size / Dimension		0.435" L x 0.183" W (11.05mm x 4.65mm)
Mounting Type		Through Hole
Type		MHz Crystal
Operating Temperature		-20°C ~ 70°C
Frequency Stability		±50ppm
Frequency Tolerance		±30ppm
Operating Mode		Fundamental
Height - Seated (Max)		0.531" (13.49mm)
ESR (Equivalent Series Resistance)		30 Ohms
Frequency		8 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		A-8.000-20

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.60.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
