A1225LLTTR-T

Part Number
A1225LLTTR-T
Manufacturer Allegro MicroSystems
Other Part Numbers
620-1351-2-ND
620-1351-1-ND
620-1351-6-ND
620-1351-6
ALLALLA1225LLTTR-T
620-1351-1
2156-A1225LLTTR-T-AMTR
620-1351-2
A1225LLTTRT

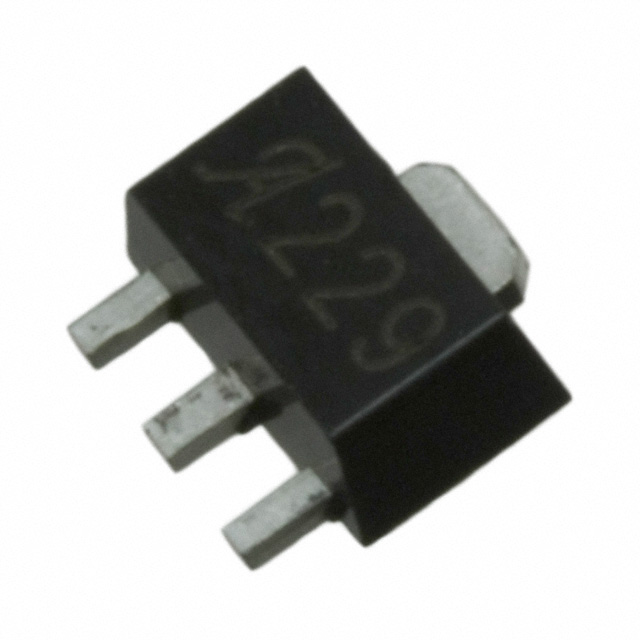

Description MAGNETIC SWITCH LATCH SOT89-3
Detailed Description Digital Switch Latch Open Drain Hall Effect SOT-89-3
Datasheet Datasheet

Product Attributes

Category
Manufacturer Allegro MicroSystems
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Obsolete
Package / Case TO-243AA
Output Type Open Drain
Polarization South Pole
Mounting Type Surface Mount
Function Latch
Operating Temperature -40°C ~ 150°C (TA)
Voltage - Supply 3.8V ~ 24V
Technology Hall Effect
Sensing Range 30mT Trip, -30mT Release
Current - Output (Max) 25mA
Current - Supply (Max) 6mA
Supplier Device Package SOT-89-3
Test Condition -40°C ~ 150°C

Documents & Media

RESOURCE TYPE LINK
Datasheets Tape Change 27/Jan/2023

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
