A1262LLHLX-X-T _ Switches (Solid State)_Magnetic Sensors_Sensors, Transducers

Part Number	A1262LLHLX-X-T
Manufacturer	Allegro MicroSystems
Other Part Numbers	620-1763-2-ND 620-1763-1 620-1763-2 620-1763-6
Description	MAGNETIC SWITCH LATCH SOT23W-5
Detailed Description	Digital Switch Latch Open Drain Hall Effect SOT-23W-5
Manufacturer Standard Lead Time	20 weeks

Category		Sensors, Transducers Magnetic Sensors Switches (Solid State)
Manufacturer		Allegro MicroSystems
Series
Packaging		Tape & Reel (TR)
Part Status		Active

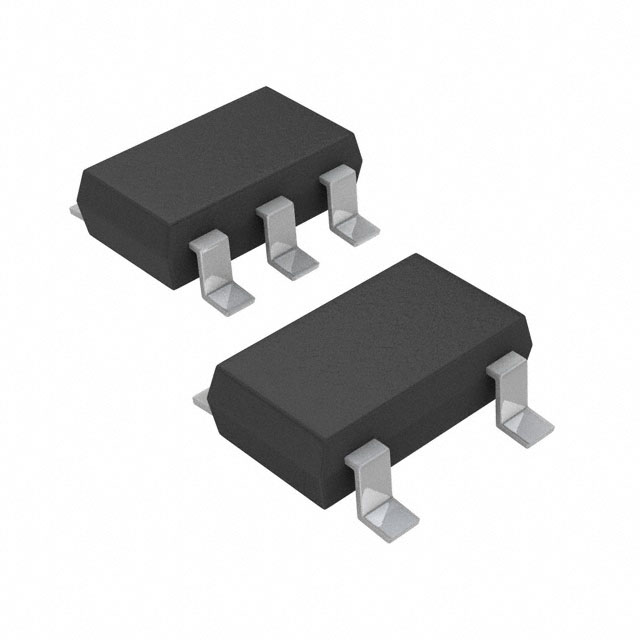

Package / Case		SOT-23-5 Thin, TSOT-23-5
Output Type		Open Drain
Polarization		South Pole
Mounting Type		Surface Mount
Function		Latch
Operating Temperature		-40°C ~ 150°C (TA)
Voltage - Supply		4V ~ 24V
Technology		Hall Effect
Sensing Range		4mT Trip, -4mT Release
Current - Output (Max)		20mA
Current - Supply (Max)		7.5mA
Supplier Device Package		SOT-23W-5
Test Condition		-40°C ~ 150°C
Grade		Automotive
Qualification		AEC-Q100

RESOURCE TYPE		LINK
Datasheets		Tape Change 27/Jan/2023

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
